09E Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

09E Transmission Clutch Packs

6HP26, 6HP26A, 6HP26X, 6HP28, 6HP28X, 09E Friction Clutch Pack
ZF6HP26, 6HP26A, 6HP26X, 6HP28, 6HP28X, 09E
2002-ON
Friction Clutch Pack Module
Contents:
12 Low/Reverse Forward Tan, 7 Overdrive High Energy, 10 Direct Intermediate High Energy (Ford 06-ON) (ZF 02-09)
RCP96-196
View
No items found.

09E Transmission Filters

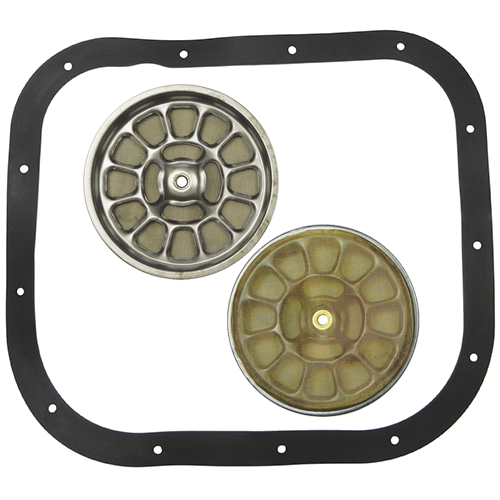

09E Transmission Filter
VOLKSWAGEN / AUDI09E
1969-1976
Transmission Filter
515417
View
6HP26, 6HP26A, 6HP26X (4WD) Transmission Filter
ZF6HP26, 6HP26A, 6HP26X (4WD)
2004-2009
Transmission Filter
515421
View
No items found.

09E Transmission Clutch Plates

6R60, 6R75, 6R80, 6HP26, 6HP28, 09E Low, Reverse, Forward Friction Clutch Plate
FORD / ZF6R60, 6R75, 6R80, 6HP26, 6HP28, 09E
2002-ON
Low, Reverse, Forward
.062/1.57
30
Teeth
7.375
OD
1068-277-004, 6L2Z-7B164-AA
R560230
View
6R60, 6R75, 6R80, 6HP26, 6HP28, 09E Overdrive High Energy Friction Clutch Plate
FORD / ZF6R60, 6R75, 6R80, 6HP26, 6HP28, 09E
2002-ON
Overdrive High Energy
.065/1.65
30
Teeth
5.151
OD
6L2Z-7B164-CA
R560220
View

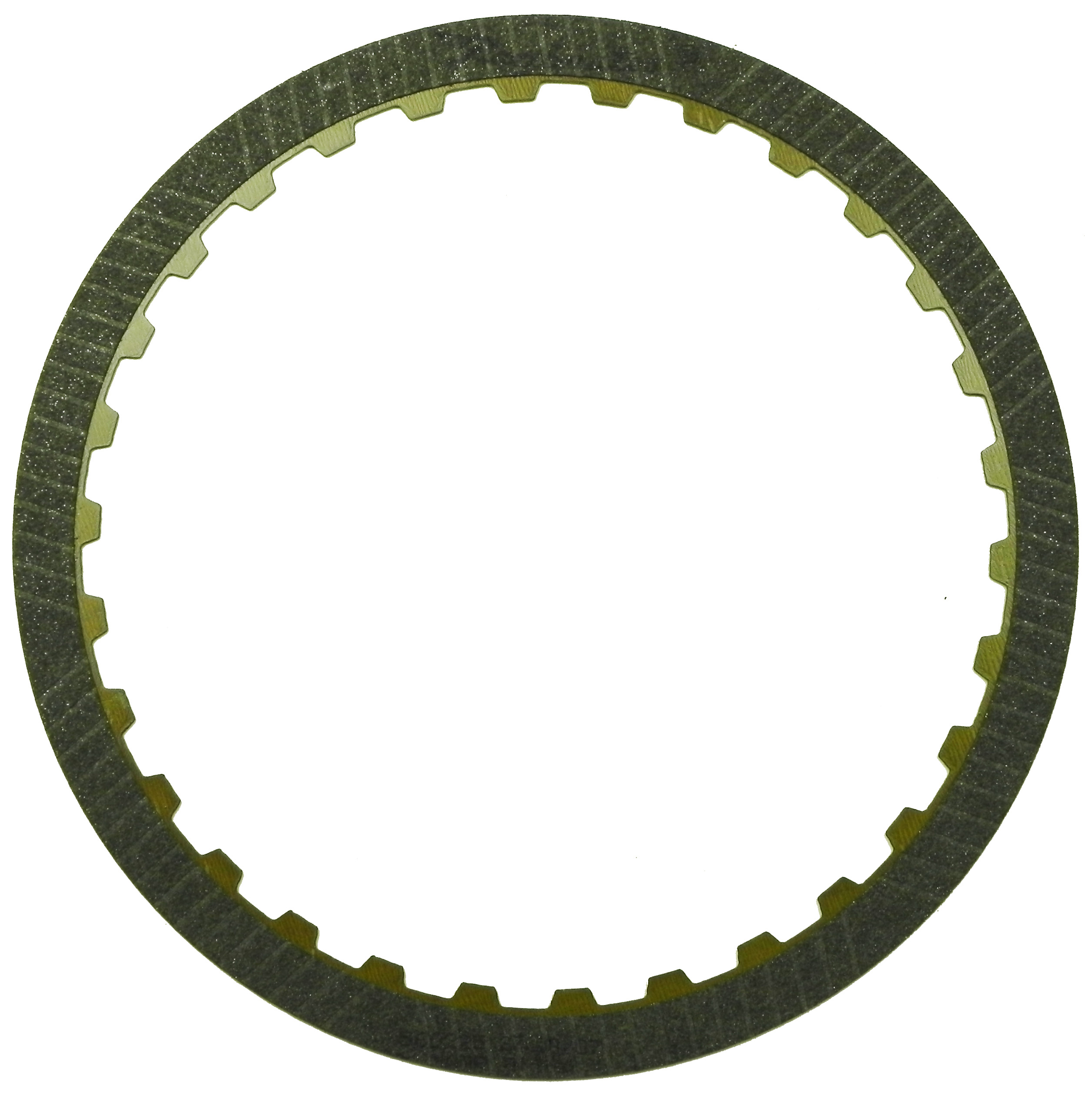

6R60, 6R75, 6R80, 6HP26, 6HP28, 09E Direct, Intermediate High Energy Friction Clutch Plate
FORD / ZF6R60, 6R75, 6R80, 6HP26, 6HP28, 09E
2002-ON
Direct, Intermediate High Energy
.085/2.16
30
Teeth
7.375
OD
1068-277-002, 6L2Z-7B164-BA
R560225
View
No items found.

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
