4T60 Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

4T60 Transmission Clutch Packs

4T60, TH440T4 Friction Clutch Pack
GM4T60, TH440T4
1989-1991
Friction Clutch Pack Module
Contents:
6 2nd High Energy, 1 4th (4T60) Graphitic, 4 Input Tan, 5 3rd (4T60E) High Energy, 5 3rd (4T60E) High Energy
RCP96-050
View
4T60 Steel Clutch Pack
GM4T60
1989-1993
Steel Clutch Pack Module
Contents:
6 2nd, Kolene® Process, 1 3rd, Flat, 2 4th 4T60, 4T60E, 4T65E, 1 Forward, Input, 4 Forward, Input
000406
View

4T60 Transmission Filters

4T60, TH440 Transmission Pump, Valve Body Filter (Old 4342)
GM4T60, TH440
1983-1993
Transmission Pump, Valve Body Filter (Old 4342)
514339
View
4T60, TH440 Transmission Shift Filter
GM4T60, TH440
1983-1993
Transmission Shift Filter
514341
View
4T60, TH440 Transmission Governor Filter
GM4T60, TH440
1983-1993
Transmission Governor Filter
514343
View
4T60, TH440 Transmission Filter
GM4T60, TH440
1983-1993
Transmission Filter
515143
View
4T60, TH440 Economy Transmission Filter
GM4T60, TH440
1983-1993
Transmission Filter
016143
View
No items found.

4T60 Transmission Clutch Plates

4T60, TH440T4, 4T60E 2nd High Energy Friction Clutch Plate
GM4T60, TH440T4, 4T60E
1985-1993
2nd High Energy
.069/1.75
38
Teeth
5.118
OD
NA
R566130
View
4T60, TH440T4, 4T60E Input Friction Clutch Plate
GM4T60, TH440T4, 4T60E
1983-1994
Input
.090/2.29
32
Teeth
4.646
OD
8649870, 8649871, 8658084, 8658085, 8662850
R505240
View
4T60, TH440T4, 4T60E, 4T65E 3rd SS, ID Spline High Energy Friction Clutch Plate
GM4T60, TH440T4, 4T60E, 4T65E
1989-ON
3rd (4T60E) High Energy, Single Sided, ID Spline, 2 Stripes
.079/2.01
32
Teeth
4.399
OD
18017205, 8668361
R561635
View
4T60, TH440T4, 4T60E, 4T65E 3rd, SS, OD Spline High Energy Friction Clutch Plate
GM4T60, TH440T4, 4T60E, 4T65E
1983-ON
3rd (4T60E) High Energy, Single Sided, OD Spline, 2 Stripes
.078/1.98
12
Teeth
4.989
OD
24216288, 8668362
R561633
View
4T60, TH440T4, 4T60E 4th Graphitic Friction Clutch Plate
GM4T60, TH440T4, 4T60E
1983-1990
4th (4T60) Graphitic, 1 Stripe
.090/2.29
18
Teeth
5.315
OD
8662172
R559525
View
4T60, TH440T4, 4T60E 2nd (Kolene Plated) Steel Clutch Plate
GM4T60, TH440T4, 4T60E
1987-ON
2nd, Kolene Process
.078/1.98
34
Teeth
5.426
OD
8662006
511445
View
4T60, TH440T4, 4T60E 3rd Steel Clutch Plate
GM4T60, TH440T4, 4T60E
1983-ON
3rd, Flat
.090/2.29
12
Teeth
4.989
OD
8644035, 8656313
511440
View
4T60, TH440T4, 4T60E 4th Steel Clutch Plate
GM4T60, TH440T4, 4T60E
1983-1993
4th 4T60, 4T60E, 4T65E
.077/1.96
3
Teeth
5.99
OD
8656767
511442
View
3T40, TH125, TH125C Forward Steel Clutch Plate
GM3T40, TH125, TH125C
1980-ON
Forward
.077/1.96
26
Teeth
4.989
OD
8631379, 8634084, 8683084
511505
View

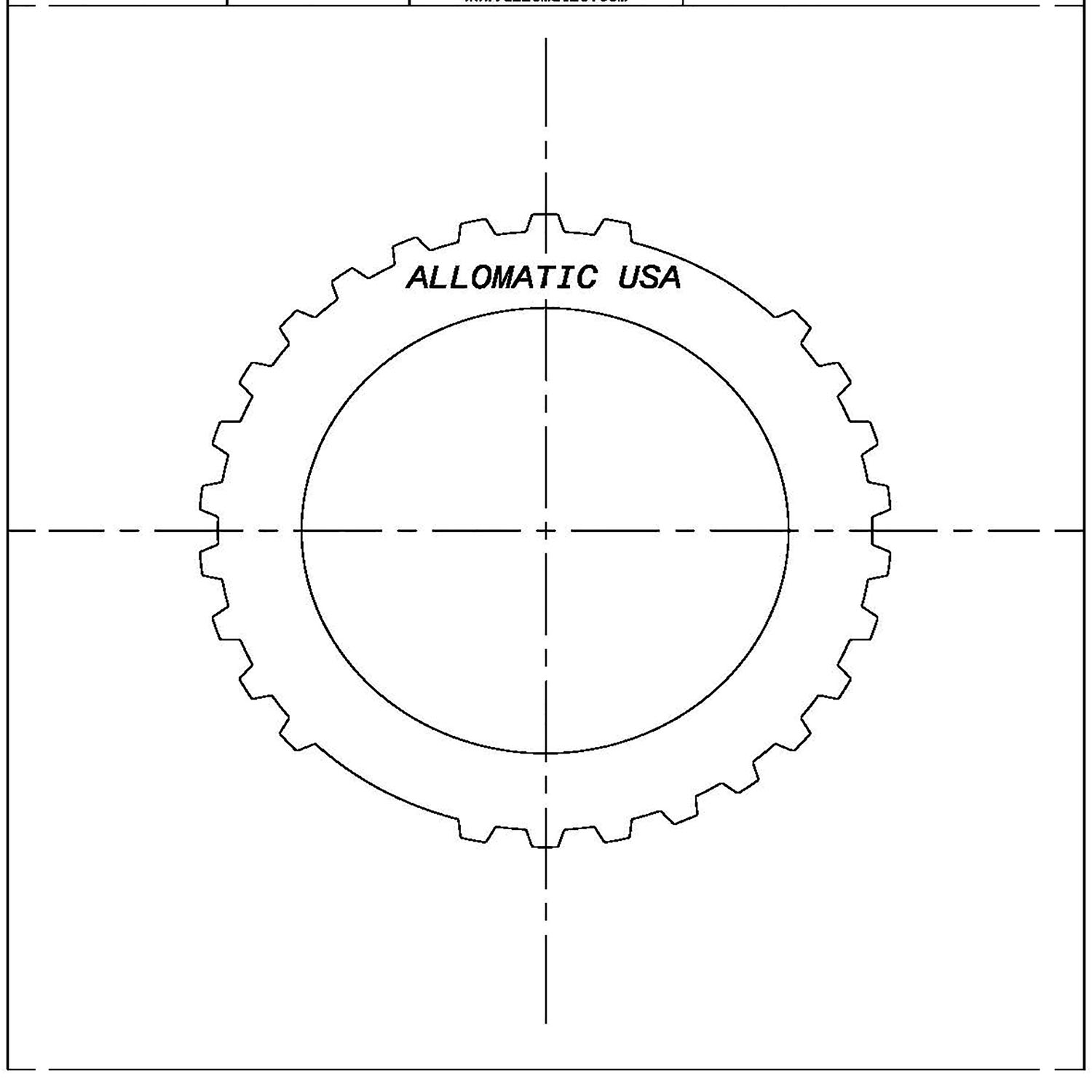

4T60, TH440T4, 4T60E Forward Input (Flat .050") Steel Clutch Plate
GM4T60, TH440T4, 4T60E
1990-1994
Forward, Input
.050/1.27
26
Teeth
4.989
OD
8651446
511509
View

4T60 Transmission Bands

4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON) 1-2 Forward Transmission Band
GM4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON)
1991-ON
1-2 (Forward)
513829
View
Welded Chassis 4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON) 1-2 Forward Transmission Band
GM4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON)
1991-ON
1-2 (Forward)
513829WC
View
4T60, 4T60E, 4T65E (97-ON) 2-1 Coast Transmission Band
GM4T60, 4T60E, 4T65E (97-ON)
1991-ON
2-1 Coast
513843
View
4T60, 4T60E, 4T65E (91-ON) Reverse Double Wrap Transmission Band
GM4T60, 4T60E, 4T65E (91-ON)
1991-ON
Reverse Double Wrap
513844
View
TH440T4, 4T60, 4T60E 1st, 2nd High Energy Transmission Band
GMTH440T4, 4T60, 4T60E
1983-1993
1st, 2nd High Energy
513833
View

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
