4T80E Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

4T80E Transmission Clutch Packs

4T80E Friction Clutch Pack
GM4T80E
1993-1994
Friction Clutch Pack Module
Contents:
3 2nd High Energy, 2 Coast High Energy, 5 Forward High Energy, 4 3rd High Energy, 3 Reverse High Energy
RCP96-102
View
4T80E Friction Clutch Pack
GM4T80E
1995-ON
Friction Clutch Pack Module
Contents:
4 2nd High Energy, 2 Coast High Energy, 3 Reverse High Energy, 5 Forward High Energy, 4 3rd High Energy
RCP96-103
View
4T80E Steel Clutch Pack
GM4T80E
1995-ON
Steel Clutch Pack Module
Contents:
1 Coast, Flat, 4 Forward Clutch, 3 Reverse Clutch, 3 2nd Clutch, 1 2nd Waved, 3 3rd Clutch
000485
View
4T80E Steel Clutch Pack
GM4T80E
1993-1994
Steel Clutch Pack Module
Contents:
3 Reverse Clutch, 3 3rd Clutch, 2 2nd, 1 Coast, Flat, 4 Forward Clutch
000487
View

4T80E Transmission Filters

4T80E Transmission Shift Pressure Control Filter
GM4T80E
1993-ON
Transmission Shift Pressure Control Filter
514375
View
4T80E Transmission Filter
GM4T80E
1993-ON
Transmission Filter
515680
View
4T80E Transmission Filter
GM4T80E
1993-ON
Transmission Filter
515681
View

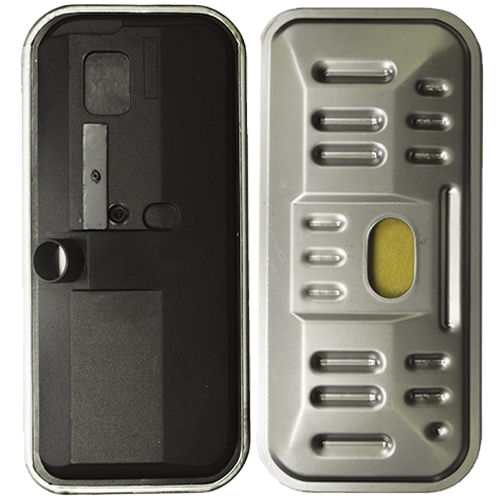

4T80E Transmission Filter
GM4T80E
1993-ON
Transmission Filter
515683
View
4T40E 1993-ON Transmission Premium Filter & Gasket Kit
GM4T40E
1993-ON
Shift-Pro Filter Kit
997682
View

4T80E Transmission Clutch Plates

4T80E 2nd High Energy Friction Clutch Plate
GM4T80E
1993-1994
2nd High Energy
.081/2.06
54
Teeth
7.518
OD
8681371
R572230
View
4T80E Coast High Energy Friction Clutch Plate
GM4T80E
1993-1994
Coast High Energy
.081/2.06
51
Teeth
6.254
OD
8677829
R572200
View
4T80E Forward High Energy Friction Clutch Plate
GM4T80E
1993-ON
Forward High Energy
.081/2.06
53
Teeth
6.41
OD
24206898
R572220
View
4T80E 3rd High Energy Friction Clutch Plate
GM4T80E
1993-ON
3rd High Energy
.080/2.03
26
Teeth
5.94
OD
8684832
R572250
View
4T80E Reverse High Energy Friction Clutch Plate
GM4T80E
1993-ON
Reverse High Energy
.081/2.06
26
Teeth
5.94
OD
24206897, 8677616
R572260
View
4T80E 2nd High Energy Friction Clutch Plate
GM4T80E
1995-ON
2nd High Energy
.071/1.80
54
Teeth
7.518
OD
24201548
R572240
View
4T80E Coast High Energy Friction Clutch Plate
GM4T80E
1995-ON
Coast High Energy
.081/2.06
53
Teeth
6.254
OD
24206896, 24223146
R572210
View
4T80E Coast (Flat) Steel Clutch Plate
GM4T80E
1993-ON
Coast, Flat
.124/3.15
8
Teeth
6.701
OD
8677808
511464
View
4T80E Forward Steel Clutch Plate
GM4T80E
1993-ON
Forward Clutch
.077/1.96
16
Teeth
6.694
OD
8679584
511579
View
4T80E Reverse Steel Clutch Plate
GM4T80E
1993-ON
Reverse Clutch
.091/2.31
22
Teeth
6.258
OD
8677615
511580
View
4T80E 2nd Steel Clutch Plate
GM4T80E
1995-ON
2nd Clutch
.080/2.03
5
Teeth
8
OD
8684721
511577
View
4T80E 2nd (Waved) Steel Clutch Plate
GM4T80E
1993-ON
2nd, Waved
.045/1.14
0
Teeth
7.559
OD
24201542
511575
View
4T80E 3rd Steel Clutch Plate
GM4T80E
1993-ON
3rd Clutch
.091/2.31
22
Teeth
6.255
OD
8677612
511578
View
4T80E 2nd Steel Clutch Plate
GM4T80E
1993-1994
2nd
.091/2.31
5
Teeth
7.943
OD
8677609, 8681834
511581
View

4T80E Transmission Bands

4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON) 1-2 Forward Transmission Band
GM4T40E, 4T45E (95-ON), 4T60, 4T60E (91-ON), 4T65E (97-ON)
1991-ON
1-2 (Forward)
513829
View
4T60, 4T60E, 4T65E (97-ON) 2-1 Coast Transmission Band
GM4T60, 4T60E, 4T65E (97-ON)
1991-ON
2-1 Coast
513843
View
4T60, 4T60E, 4T65E (91-ON) Reverse Double Wrap Transmission Band
GM4T60, 4T60E, 4T65E (91-ON)
1991-ON
Reverse Double Wrap
513844
View
4T60E, 4T65E (97-ON) 2-1 (Forward) Manual Transmission Band
GM4T60E, 4T65E (97-ON)
1991-ON
2-1 (Forward)
RB23871
View
4T65E 1st, 2nd Manual High Energy Transmission Band
GM4T65E
1991-ON
2-1 (Forward) Manual High Energy
RB84702H
View

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
