5L50E Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

5L50E Transmission Clutch Packs

5L40E, 5L50E Friction Clutch Pack
GM5L40E, 5L50E
2002-ON
Friction Clutch Pack Module
Contents:
5 Low/Reverse High Energy, 3 Coast High Energy, 3 2nd Coast High Energy, 5 2nd Coast Direct High Energy, 8 2nd Coast Low/Reverse High Energy, 4 Forward High Energy, 6 2nd High Energy, 6 Reverse High Energy, 4 Intermediate High Energy
RCP96-190
View
No items found.

5L50E Transmission Filters

5L40E, 5L50E Transmission Filter
GM5L40E, 5L50E
1999-ON
Transmission Filter
515690
View
5L40E, 5L50E Transmission Filter
GM5L40E, 5L50E
1999-ON
Transmission Filter
515691
View
5L40E, 5L50E Transmission Filter
GM5L40E, 5L50E
1999-ON
Transmission Filter
515978
View
5L40E, 5L50E Transmission Premium Filter & Gasket Kit
GM5L40E, 5L50E
1999-ON
Shift-Pro Filter Kit
997978
View

5L50E Transmission Clutch Plates

5L40E, 5L50E Low, Reverse SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Low, Reverse, Single Sided, OD Spline High Energy
.063/1.60
29/30
Teeth
7.08
OD
96020780
R558450
View
5L40E, 5L50E Coast SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Coast, Single Sided, ID Spline High Energy
.063/1.60
24
Teeth
4.85
OD
96020322
R558420
View
5L40E, 5L50E 2nd Coast SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Coast, Single Sided, ID Spline, BMW X-3, X-5 Only High Energy
.059/1.50
36
Teeth
6.925
OD
96024087
R558475
View
5L40E, 5L50E2nd, Coast, Direct SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Coast, Direct, Single Sided, OD Spline High Energy
.063/1.60
36
Teeth
7.08
OD
96020157
R558405
View
5L40E, 5L50E 2nd Coast, Low Reverse, Direct SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Coast, Low, Reverse, Direct Single Sided, ID Spline (Except AWD) High Energy
.063/1.60
36
Teeth
6.81
OD
96020156
R558400
View
5L40E, 5L50E Forward SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Forward, Single Sided, ID Spline High Energy
.063/1.60
24
Teeth
5.115
OD
96020326
R558430
View
5L40E, 5L50E Intermediate SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Intermediate, Single Sided, ID Spline High Energy
.063/1.60
24
Teeth
5.31
OD
96020684
R558440
View
5L40E, 5L50E 2nd SS, ID Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Single Sided, ID Spline, BMW X-3, X-5 Only High Energy
.062/1.57
24
Teeth
5.425
OD
96023158
R558465
View

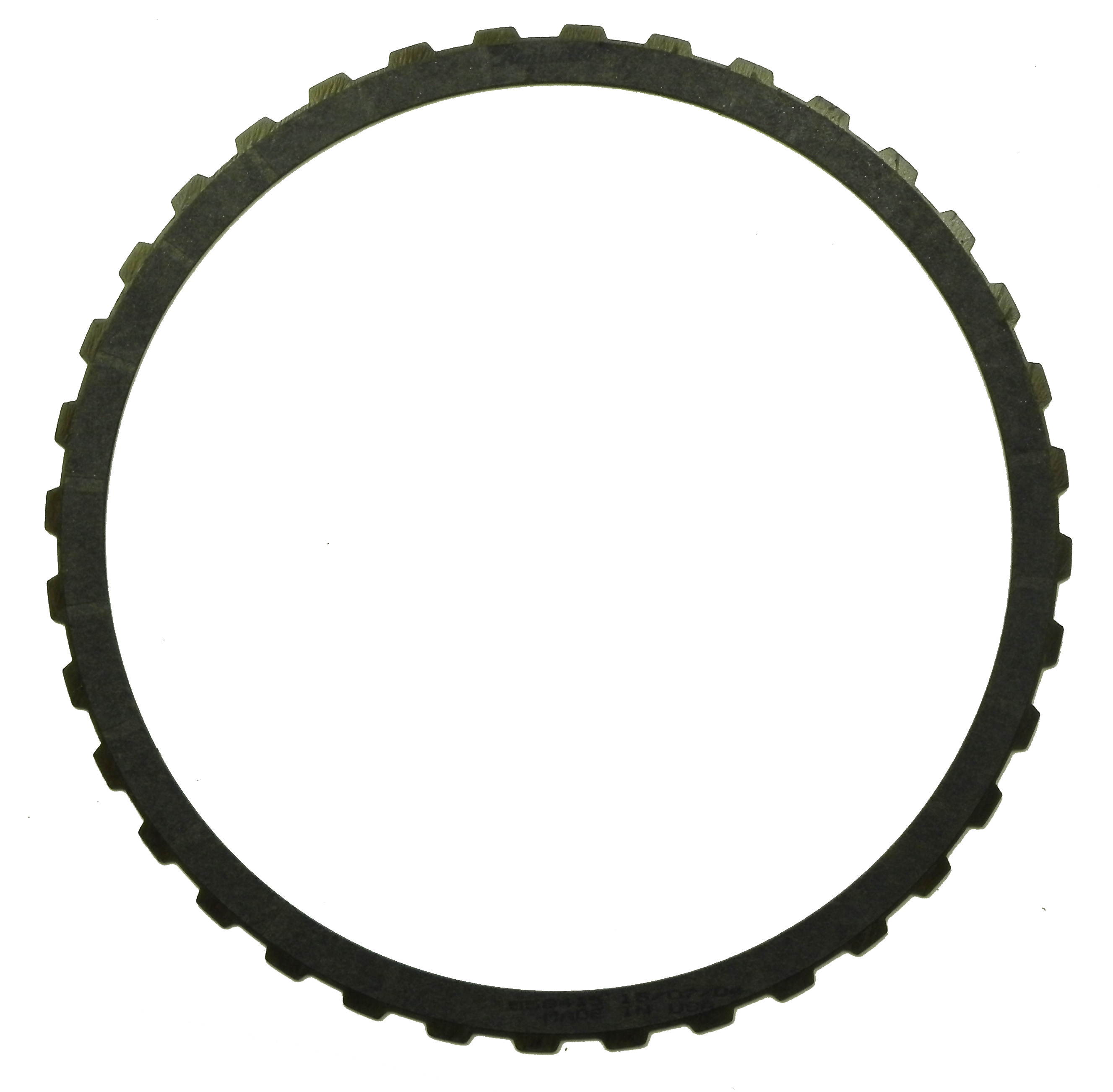

5L40E, 5L50E Reverse, Overdrive SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Reverse, Overdrive, Single Sided, OD Spline High Energy
.063/1.60
36
Teeth
7.305
OD
96020210
R558415
View
5L40E, 5L50E Intermediate SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Intermediate, Single Sided, OD Spline High Energy
.064/1.63
24
Teeth
5.5
OD
96020685
R558445
View
5L40E, 5L50E Forward SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Forward, Single Sided, OD Spline High Energy
.063/1.60
24
Teeth
5.375
OD
96020327
R558435
View
5L40E, 5L50E 2nd SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Single Sided, OD Spline, BMW X-3, X-5 Only High Energy
.062/1.57
24
Teeth
5.675
OD
96023159
R558470
View
5L40E, 5L50E Coast SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Coast, Single Sided, OD Spline High Energy
.063/1.60
12
Teeth
5.16
OD
96020323
R558425
View
5L40E, 5L50E 2nd Coast SS, OD Spline High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
2nd, Coast, Single Sided, OD Spline, BMW X-3, X-5 Only High Energy
.059/1.50
6
Teeth
7.21
OD
96024089
R558480
View
5L40E, 5L50E Reverse, Overdrive SS, ID High Energy Friction Clutch Plate
GM5L40E, 5L50E
1999-ON
Reverse, Overdrive, Single Sided, ID Spline High Energy
.063/1.60
36
Teeth
7.065
OD
96020209
R558410
View
No items found.

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
