5R55E Transmission Rebuild Kit Parts

The 5R55E transmission is a 5-speed electronically controlled transmission with 550 lb-ft of torque. The 5R55E transmission is known as the first 5-speed transmission for standard passenger road vehicles. The 5R55E was found in Ford Rangers, Explorers, and the Aerostar and could two-wheel and four-wheel drive trucks. See the full Raybestos Powertrain 5R55E transmission parts listing below.

Transmission Specs

5-Speed

1997-2001

Gear Ratios: 1st - 2.47, 2nd - 1.86, 3rd - 1.47, 4th - 1, 5th - .75, Reverse - 2.10

View Tech Resources >>

Exploded View >>

5R55E Transmission Clutch Packs

4R44E, 5R55E HT Friction Clutch Pack

FORD 4R44E, 5R55E

1997-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

6 High Reverse HT, 3 Overrun High Energy, 6 Forward High Energy

RHT96-107

5R55E Steel Clutch Pack

1997-ON

Steel Clutch Pack Module

Contents:

3 High Reverse A4LD, A4LD-E Overdrive, 6 Forward A4LD, 6 High Reverse 4R44E, 5R44E, 5R55E

000402

5R55E Transmission Filters

A4LD-E (4WD), 4R55E, 5R55E (4WD) Transmission Filter

FORD A4LD-E (4WD), 4R55E, 5R55E (4WD)

1995-ON

Transmission Filter

515580

A4LD-E, 4R44E (2WD) Economy Transmission Filter

FORD A4LD-E, 4R44E (2WD)

1995-ON

Transmission Filter

016579

A4LD-E (4WD), 4R55E, 5R55E (4WD) Economy Transmission Filter

FORD A4LD-E (4WD), 4R55E, 5R55E (4WD)

1995-ON

Transmission Filter

016580

No items found.

5R55E Transmission Clutch Plates

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E High Reverse HT Friction Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E

1997-ON

High Reverse Proprietary High Energy (HT)

.069/1.75

48

Teeth

4.892

OD

1L5Z-7B164-BA, F7ZZ-7B164-BA

RH560000

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E Forward High Energy Friction Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E

1997-ON

Forward High Energy

.067/1.70

72

Teeth

4.655

OD

F7ZZ-7B164-A

R560010

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E, 5R55N, 5R55W, 5R55S Overrun High Energy Friction Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E, 5R55N, 5R55W, 5R55S

1997-ON

Overrun High Energy

.069/1.75

16

Teeth

4.892

OD

8R2Z-7B164-A, F7ZZ-7B164-CA

R560020

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E High Reverse Steel Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E

1997-ON

High Reverse 4R44E, 5R44E, 5R55E

.083/2.11

20

Teeth

5.042

OD

F77Z-7B442-AA

511367

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E Direct Reverse Steel Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E

1990-ON

High Reverse A4LD, A4LD-E, Overdrive

.065/1.65

20

Teeth

5.042

OD

F0TZ-7B442-B, F5TZ-7B442-A, XW4Z-7B442-GA

511368

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E Forward (.065") Steel Clutch Plate

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R44E, 5R55E

1990-ON

Forward A4LD, A4LD-E

.065/1.65

19

Teeth

4.81

OD

F0TZ-7B442-A, ZZL0-19-334

511369

5R55E Transmission Bands

C3, A4LD, 4R44E, 4R55E, 5R44E, 5R55E Reverse Transmission Band

FORD C3, A4LD, 4R44E, 4R55E, 5R44E, 5R55E

1974-ON

Reverse

513826

C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R55 (99-ON) Intermediate, Overdrive Transmission Band

FORD C3, A4LD, A4LD-E, 4R44E, 4R55E, 5R55 (99-ON)

1985-ON

Intermediate, Overdrive Rayflex

RB59861

5R55E Transmission Rebuild Kit

No items found.

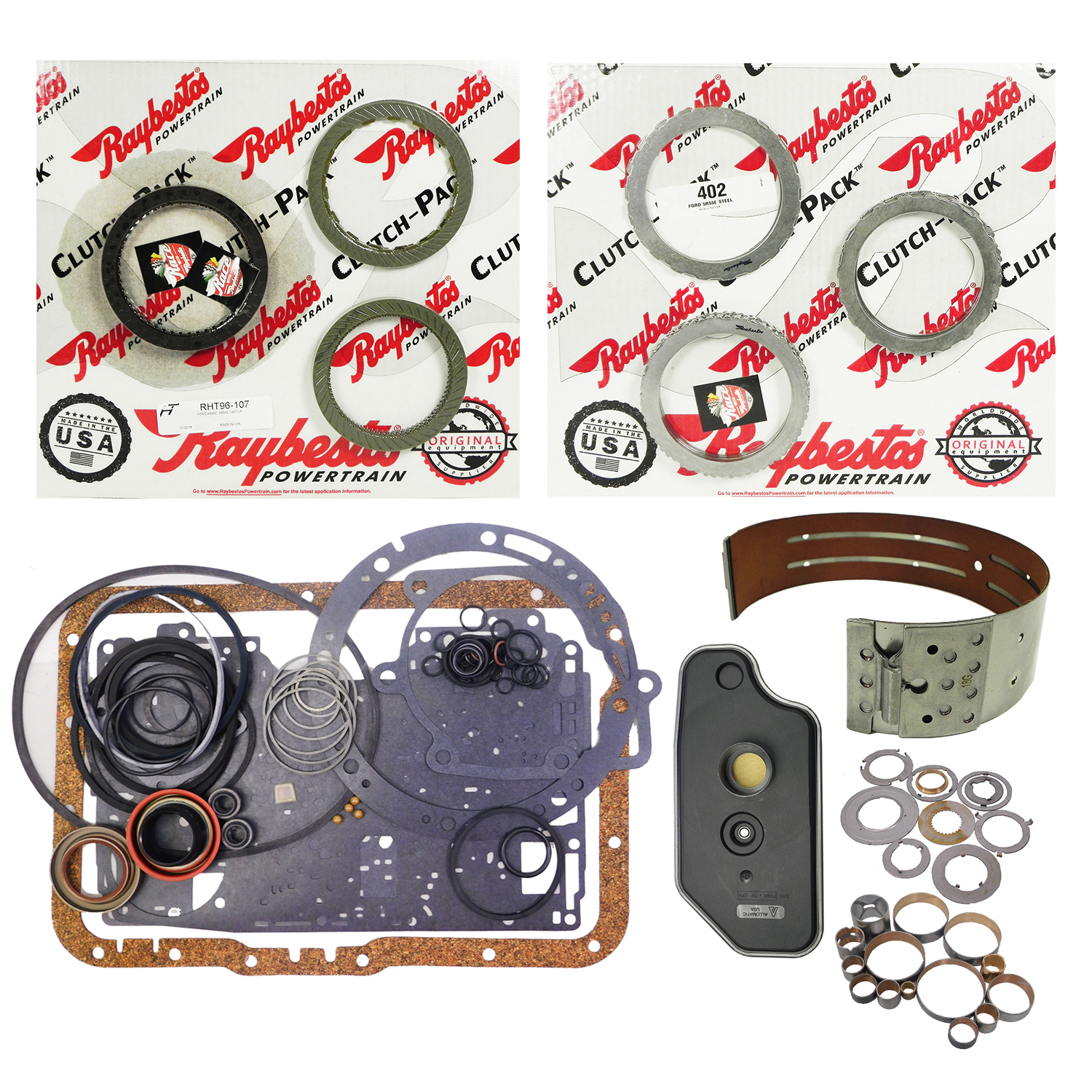

4R44E/4R55E/5R55E Super Rebuild Kit

FORD 4R44E/4R55E/5R55E

1997-ON

Super Rebuild Kit

AZ56008L

4R44E/4R55E/5R55E Super Rebuild Kit

FORD 4R44E/4R55E/5R55E

1997-ON

Super Rebuild Kit

AZ56008LA

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
