6HP19 Transmission Rebuild Kit Parts

The 6HP19 transmission is a 6-speed automatic transmission developed by ZF and used in a variety of BMW vehicles. The 6HP19A transmission is a variation of the 6HP19 design and is used in VW and Audi four-wheel drive applications. The 6HP19 transmission is a downgraded development of the 6HP26 with a torque rating of 295 lb-ft for less demanding vehicles. See the full Raybestos Powertrain 6HP19 transmission parts listing below.

Transmission Specs

6-Speed

2004-ON

Gear Ratios: 1st - 4.17, 2nd - 2.34, 3rd - 1.52, 4th - 1.14, 5th - .87, 6th - .69, Reverse - 3.4

View Tech Resources >>

Exploded View >>

6HP19 Transmission Clutch Packs

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L HT Friction Clutch Pack

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

6 E Clutch 4,5,6 HT, 5 D Clutch 1st Reverse High Energy, 4 A Clutch 1-2-3-4 High Energy, 6 B Clutch 3-5 Reverse High Energy, 4 C Clutch 2-6 High Energy

RHT96-236

6HP19, 6HP19X, 6HP21, 6HP21X Steel Clutch Pack

ZF 6HP19, 6HP19X, 6HP21, 6HP21X

2004-ON

Steel Clutch Pack Module

Contents:

6 B Clutch (3, 5 Reverse), 5 D Clutch (1st, Reverse), 5 A Clutch (1, 2, 3, 4), 4 C Clutch (2-6), 5 E Clutch (4, 5, 6) 6HP19/X, 6HP21/X

STMZF17

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X Steel Clutch Pack

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X

2000-ON

Steel Clutch Pack Module

Contents:

6 B Clutch (3, 5 Reverse), 5 D Clutch (1st, Reverse), 6 E Clutch (4, 5, 6) 6HP19A/X, 6HP21/X, 5 A Clutch (1, 2, 3, 4), 4 C Clutch (2-6)

STMZF21

6HP19 Transmission Filters

6HP19, 6HP19A, 6HP19X Transmission Filter

ZF 6HP19, 6HP19A, 6HP19X

2001-2011

Transmission Filter

515442

6HP19, 6HP19A, 6HP19X Transmission Filter

ZF 6HP19, 6HP19A, 6HP19X

2004-ON

Transmission Filter

515987B

No items found.

6HP19 Transmission Clutch Plates

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L E Clutch (4, 5 ,6) HT Friction Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

E Clutch (4, 5 ,6) Proprietary High Energy (HT)

.063/1.60

30

Teeth

4.879

OD

1071-271-033, 1071-271-082

RH560460

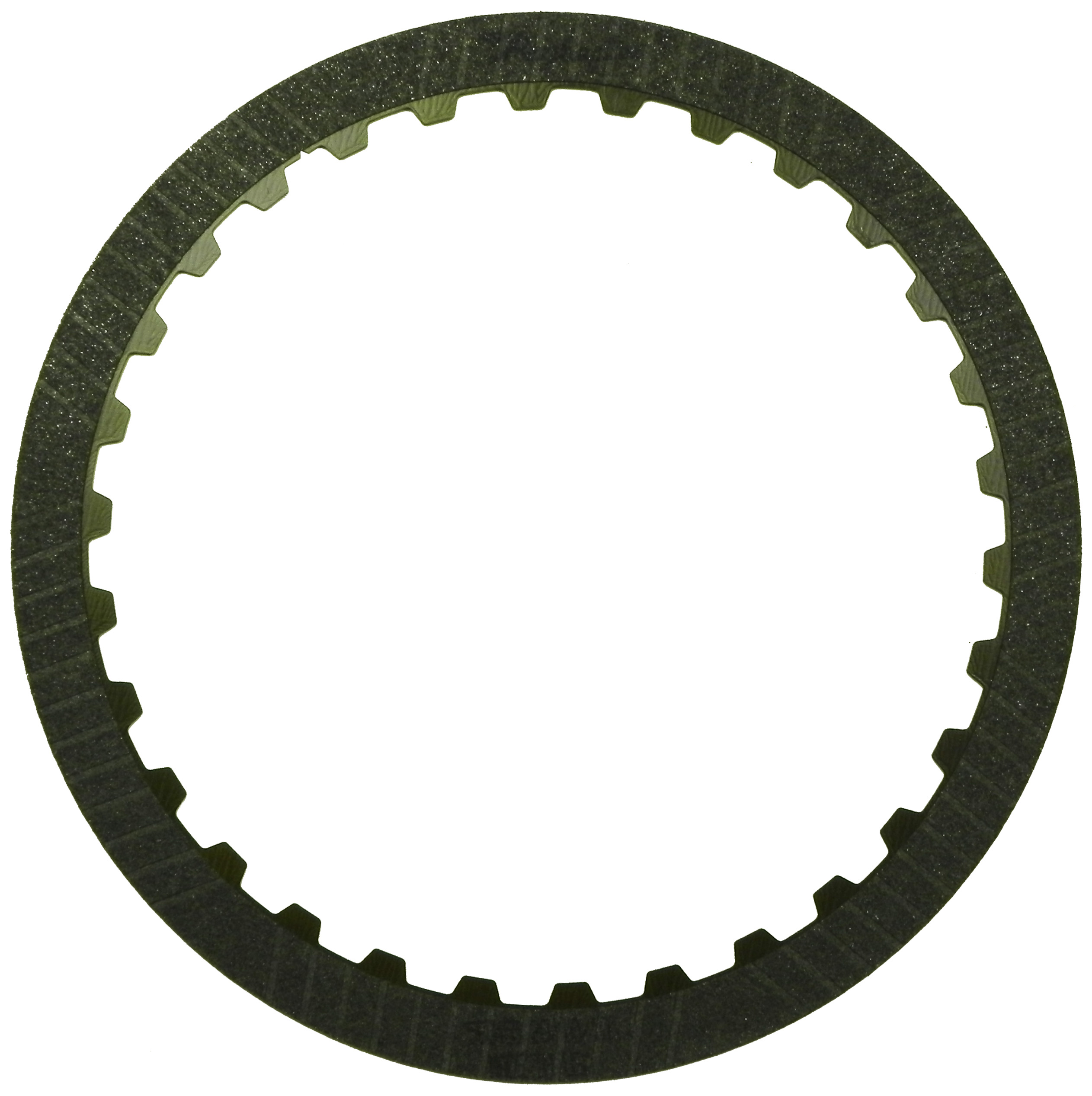

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L D Clutch (1st Reverse) High Energy Friction Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

D Clutch (1st Reverse) High Energy

.062/1.57

30

Teeth

5.944

OD

1071-273-003

R560455

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L C Clutch (2-6) High Energy Friction Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

C Clutch (2-6) High Energy

.062/1.57

24

Teeth

6.1

OD

1071-275-005

R560450

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L B Clutch (3-5, Reverse) High Energy Friction Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

B Clutch (3-5 Reverse) High Energy

.084/2.13

30

Teeth

6.647

OD

1071-272-004

R560445

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L 'A' Clutch (1, 2, 3, 4) Friction Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

A Clutch (1, 2, 3, 4)

.062/1.57

30

Teeth

6.647

OD

1071-272-005

R560440

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L E (4-5-6) Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

E Clutch (4, 5, 6) 6HP19A/X, 6HP21/X

.059/1.50

24

Teeth

5.095

OD

1071-371-052

511260

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L E (4-5-6 .083") Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

E Clutch (4, 5, 6) 6HP19/X, 6HP21/X

.083/2.11

24

Teeth

5.095

OD

1071-371-048

511259

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L D (1st Reverse) Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

D Clutch (1st, Reverse)

.070/1.78

24

Teeth

6.183

OD

1071-373-009

511258

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L C (2-6) Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

C Clutch (2-6)

.098/2.49

24

Teeth

6.341

OD

1071-375-006

511257

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L B (3-5 Reverse) Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

B Clutch (3, 5 Reverse)

.094/2.39

30

Teeth

6.923

OD

1071-372-025

511256

6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L 'A' (1-2-3-4) Steel Clutch Plate

ZF 6HP19, 6HP19A, 6HP19X, 6HP21, 6HP21X, 09L

2004-ON

A Clutch (1, 2, 3, 4)

.118/3.00

30

Teeth

6.923

OD

1071-372-010

511255

No items found.

No items found.

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
