6R140 Transmission Rebuild Kit Parts

The Ford 6R140 transmission is a 6-speed automatic transmission that was first launched in 2009 to handle the power of the 6.7-liter Power Stroke V8 engine. The 6R140 transmission boasts greater capability than its GM counterpart Allison 1000 and weighs less at 325 pounds dry. Raybestos Powertrain offers 6R140 GPZ clutch plates to increase performance and durability in diesel work truck and high-stress driven applications.

Transmission Specs

6-Speed

2011-2019

Gear Ratios: 1st - 3.97, 2nd - 2.32, 3rd - 1.52, 4th - 1.15, 5th - .86, 6th - .67

View Tech Resources >>

Exploded View >>

6R140 Transmission Clutch Packs

6R140 GPZ Friction Clutch Pack

2011-2014

Performance

GPZ Friction Clutch Pack Module

Contents:

10 - GPZ749 Direct/Intermediate, 5 - GPZ751 Low/Reverse (.066), 5 - GPZ747 Forward, 7 - GPZ750 Overdrive (Must use with steel module STMFORD20 or STMFORD20K for applications with Gas engines and steel module 000389 for applications with diesel engines)

RGPZ-6R141

6R140 GPZ (Use With STMFORD20) Friction Clutch Pack

2015-2019

Performance

GPZ Friction Clutch Pack Module

Contents:

4 - GPZ749 Direct/Intermediate, 5 - GPZ748 Low/Reverse (.070), 4 - GPZ747 Forward, 7 - GPZ750 Overdrive, 5 - GPZ210 Direct/Intermediate (.066) (Must use with steel module STMFORD20 or STMFORD20K)

RGPZ-6R142

6R140 Friction Clutch Pack

2011-2014

Friction Clutch Pack Module

Contents:

5 Low Reverse Waved High Energy Segmented, 7 Overdrive Clutch Segmented High Energy, 10 Direct Intermediate Clutch High Energy, 5 Forward Clutch Waved High Energy

RCP96-253

6R140 Diesel Steel Clutch Pack

2011-2014

Steel Clutch Pack Module

Contents:

4 Low Reverse Clutch, 7 Overdrive (4-5-6) Clutch, 5 Direct (Diesel) Clutch, 5 Direct (Gas), Intermediate (Gas/Disel), 5 Forward Clutch

000389

6R140 Steel Clutch Pack

2011-ON

Steel Clutch Pack Module

Contents:

4 Low Reverse Clutch, 7 Overdrive (4-5-6) Clutch, 9 Direct (Gas), Intermediate (Gas/Diesel) Clutch, 5 Forward Clutch

000391

6R140 Steel Clutch Pack

2011-2019

Steel Clutch Pack Module

Contents:

5 - 511330 Forward, 7 - 511333 Overdrive (4-5-6), 10 - 511332 Direct(Gas)/Intermediate (Diesel), 4 - 511334 Low Reverse (use with RGPZ-6R141 for 2011-2014 gas applications or with RGPZ-6R142 for all 2015-On applications)

STMFORD20

6R140 Kolene® Steel Clutch Pack

2011-2019

Kolene® Steel Clutch Pack Module

Contents:

5 - 51K330 Forward, 7 - 51K333 Overdrive (4-5-6), 10 - 51K332 Direct(Gas)/Intermediate (Diesel), 4 - 51K334 Low Reverse (use with RGPZ-6R141 for 2011-2014 gas applications or with RGPZ-6R142 for all 2015-On applications)

STMFORD20K

6R140 Transmission Filters

6R140 Transmission Filter

2011-ON

Transmission Filter

515198

6R140 Transmission Premium Filter & Gasket Kit

2011-ON

Shift-Pro Filter Kit

997198

6R140 Transmission Clutch Plates

6R140 Overdrive GPZ Friction Clutch Plate

2011-2014

Overdrive Clutch GPZ

.078/1.98

32

Teeth

5.733

OD

BC3Z-7B164-B

GPZ200

6R140 INTERMEDIATE GPZ Friction Clutch Plate

2015-2018

Intermediate Clutch GPZ

.066/1.68

32

Teeth

8.527

OD

FC3Z-7B164-A

GPZ210

6R140 Overdrive Clutch (Selective) GPZ Friction Clutch Plate

2011-ON

Overdrive Clutch (Selective) GPZ

.064/1.63

32

Teeth

5.733

OD

NA

GPZ215

6R140 Forward (Waved) GPZ Friction Clutch Plate

2011-2018

Forward (Waved)

0.062

32

Teeth

8.088

OD

CC3Z-7B164-A

GPZ747

6R140 Low / Reverse GPZ Friction Clutch Plate

2015-2018

Low / Reverse (Waved)

0.07

96

Teeth

8.768

OD

BC3Z-7B164-A

GPZ748

6R140 Direct 11-18 / Intermediate 11-14 GPZ Friction Clutch Plate

2011-2018

Direct 11-18 / Intermediate 11-14

0.084

32

Teeth

8.527

OD

BC3Z-7B164-F

GPZ749

6R140 Overdrive GPZ Friction Clutch Plate

2011-2018

Overdrive

0.078

32

Teeth

5.733

OD

BC3Z-7B164-B

GPZ750

6R140 Low / Reverse GPZ Friction Clutch Plate

2011-2014

Low / Reverse

0.066

96

Teeth

8.768

OD

BC3Z-7B164-A

GPZ751

6R140 Forward Clutch (Waved) High Energy Friction Clutch Plate

2011-ON

Forward Clutch (Waved) High Energy

.062/1.57

32

Teeth

8.088

OD

BC3Z-7B164-D

R572400

6R140 DIRECT 11-18 / INTERMEDIATE 11-14 FRICTION CLUTCH PLATE

2011-2018

Direct 11-18, Intermediate 11-14

.084/2.13

32

Teeth

8.527

OD

BC3Z-7B164-C, BC3Z-7B164-F, BC3Z-7B164-G

R572405

6R140 Overdrive High Energy Friction Clutch Plate

2011-ON

Overdrive Clutch High Energy

.078/1.98

32

Teeth

5.733

OD

BC3Z-7B164-B

R572410

6R140 Overdrive Clutch (Segmented) High Energy Friction Clutch Plate

2011-ON

Overdrive Clutch (Segmented) High Energy

.078/1.98

32

Teeth

5.733

OD

BC3Z-7B164-B

R572411

6R140 Low Reverse (Waved) Friction Clutch Plate

2011-ON

Low Reverse (Waved)

.066/1.68

96

Teeth

8.768

OD

BC3Z-7B164-A

R572416

6R140 Direct, Intermediate Steel Clutch Plate

2011-ON

Direct (Diesel) Clutch (.062")

.062/1.57

40

Teeth

8.884

OD

BC3Z-7B442-C

5111000

6R140 Converter Steel Clutch Plate

2011-ON

Torque Converter Steel Plate (Must Use With RT400140HC)

.105/2.67

21/24

Teeth

12.37

OD

NA

511329

6R140 Forward Steel Clutch Plate

2011-ON

Forward Clutch

.079/2.01

24/40

Teeth

8.884

OD

BC3Z-7B442-D

511330

6R140 Direct (Diesel) Steel Clutch Plate

2011-ON

Direct (Diesel) Clutch

.083/2.11

40

Teeth

8.884

OD

BC3Z-7B442-C

511331

6R140 Direct (Gas), Intermediate (Gas/Diesel) Steel Clutch Plate

2011-ON

Direct (Gas), Intermediate (Gas/Diesel) Clutch

.119/3.02

38/40

Teeth

8.884

OD

BC3Z-7B442-E

511332

6R140 Overdrive Steel Clutch Plate

2011-ON

Overdrive (4-5-6) Clutch

.079/2.01

28

Teeth

5.999

OD

BC3Z-7B442-B

511333

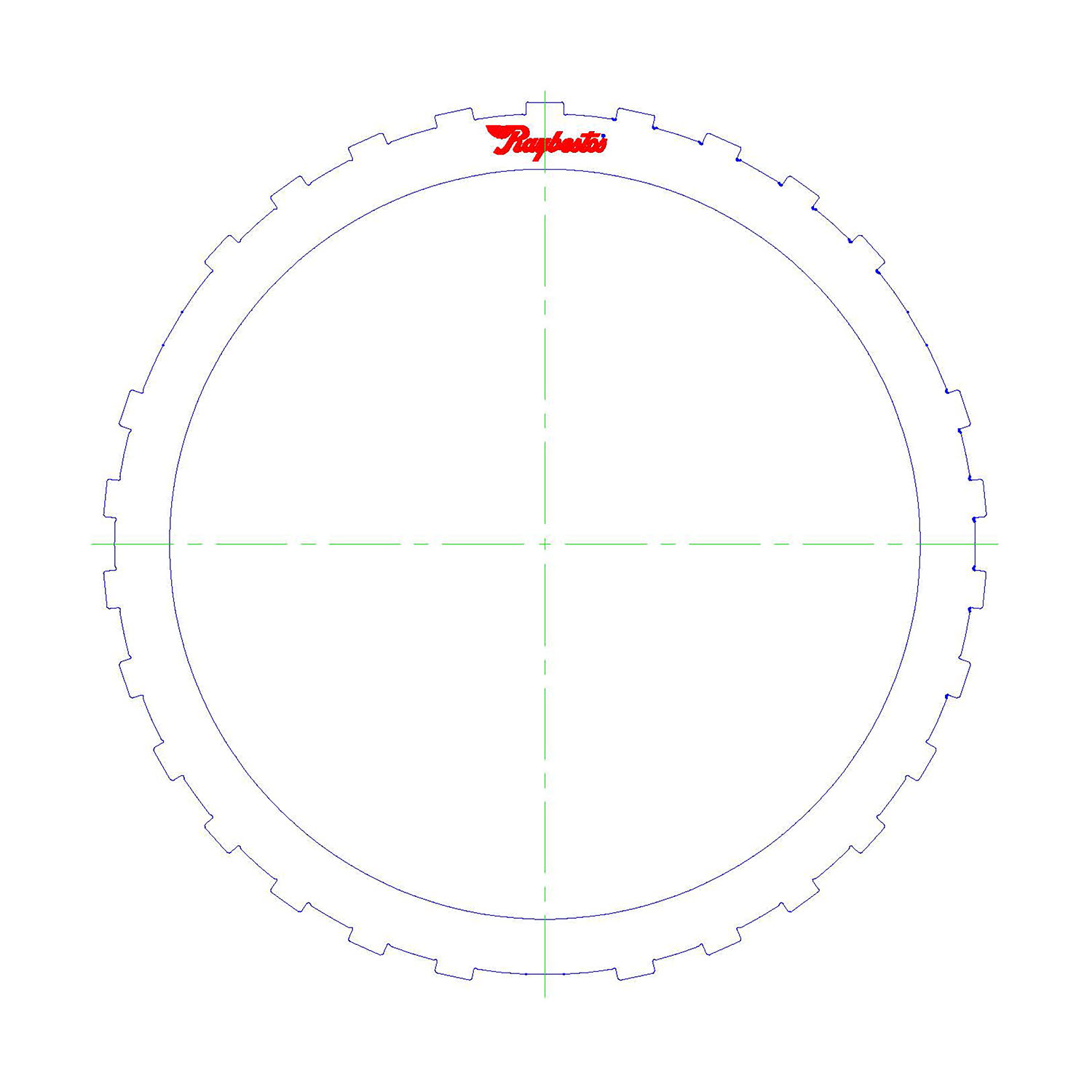

6R140 Low Reverse Steel Clutch Plate

2011-ON

Low Reverse Clutch

.079/2.01

27/30

Teeth

9.103

OD

BC3Z-7B442-A

511334

6R140 Converter Steel Clutch Plate

2011-ON

Torque Converter Steel Plate (Must Use With RT400140HC)

.100/2.54

18/24

Teeth

12.37

OD

NA

511335

6R140 Overdrive Selective (.062") Steel Clutch Plate

2011-ON

Overdrive (4-5-6) Clutch (Selective) (.062")

.062/1.57

28

Teeth

5.999

OD

NA

511336

6R140 Direct (Diesel), Intermediate Kolene® Steel Clutch Plate

2011-ON

Direct (Diesel) Kolene® High Performance

.062/1.57

40

Teeth

8.884

OD

NA

51K1000

6R140 Forward Kolene® Steel Clutch Plate

2011-ON

Forward Kolene® High Performance

.079/2.01

24/40

Teeth

8.884

OD

NA

51K330

6R140 Direct (Diesel) Kolene® Steel Clutch Plate

2011-ON

Direct (Diesel) Kolene® High Performance

.083/2.11

40

Teeth

8.884

OD

NA

51K331

6R140 Direct (Gas), Intermediate (Diesel) Kolene® Steel Clutch Plate

2011-ON

Direct (Gas), Intermediate (Gas/Diesel) Clutch Kolene® High Performance

.119/3.02

38/;40

Teeth

8.884

OD

NA

51K332

6R140 Overdrive Kolene® Steel Clutch Plate

2011-ON

Overdrive (4-5-6) Clutch Kolene® High Performance

.079/2.01

28

Teeth

5.999

OD

NA

51K333

6R140 Low Reverse Kolene® Steel Clutch Plate

2011-ON

Low Kolene® High Performance

.079/2.01

27/30

Teeth

9.103

OD

NA

51K334

6R140 Overdrive (.062" Selective) Kolene® Steel Clutch Plate

2011-ON

Overdrive (4-5-6) Clutch Kolene® High Performance (.062")

.062/1.57

28

Teeth

5.999

OD

NA

51K336

No items found.

6R140 Transmission Rebuild Kit

6R140 GPZ Performance Transmission Super Rebuild Kit

2010-UP

GPZ Performance Transmission Super Rebuild Kit

RMCSKGPZ-036

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
