8HP51 Transmission Rebuild Kit Parts

The 8HP51 transmission is an eight speed longitudinal automatic transmission developed by ZF and utilized in the 2020 return of the Toyota Supra, as well as, several BMW vehicle applications. A half million 8HP51 transmission units are scheduled for production through 2028. Contact your customer service representative to pre-order Raybestos Powertrain 8HP51 clutches today.

Transmission Specs

8-Speed

2020-ON

Gear Ratios: 1st - 5.25, 2nd - 3.36, 3rd - 2.17, 4th - 1.72, 5th - 1.31, 6th - 1, 7th - .82, 8th - .64

View Tech Resources >>

Exploded View >>

8HP51 Transmission Clutch Packs

ZF 8HP51

2020-ON

Performance

GPZ Friction Clutch Pack Module

Contents:

(5) GPZ775 A, (5) GPZ783 B waved, (6) GPZ784 C waved, (4) GPZ778 D, (6) GPZ784 E waved (Use with Steel Clutch Pack Module STMZF18)

RGPZ-280

View

8HP45, 8HP50, 8HP50Z, 8HP51 Steel Clutch Pack

ZF 8HP45, 8HP50, 8HP50Z, 8HP51

2011-ON

Steel Clutch Pack Module

Contents:

(5) 511395 A Clutch, (5) 511396 B Clutch, (6) 511397 C Clutch, (4) 511398 D Clutch, (6) 511397 E Clutch

STMZF18

View

No items found.

8HP51 Transmission Clutch Plates

8HP45, 8HP51, 845RE A Clutch GPZ Friction Clutch Plate

ZF 8HP45, 8HP51, 845RE

2011-ON

A Clutch

.062/1.57

Teeth

5.112

GPZ775

View

8HP51 B Clutch (Waved) GPZ Friction Clutch Plate

ZF 8HP51

2020-ON

B Clutch (Waved)

.081/2.06

38/40

Teeth

6.792

GPZ783

View

8HP51 C & E Clutch (Waved) GPZ Friction Clutch Plate

ZF 8HP51

2020-ON

C & E Clutch (Waved)

.084/2.13

Teeth

4.553 ID

GPZ784

View

8HP45, 845RE, 850RE, 8HP50, 8HP50Z, 8HP51 D Clutch (Waved) GPZ Friction Clutch Plate

ZF 8HP45, 845RE, 850RE, 8HP50, 8HP50Z, 8HP51

2011-ON

D Clutch (Waved)

.084/2.13

Teeth

5.814

GPZ778

View

845RE 'A' Clutch HT Friction Clutch Plate

CHRYSLER 845RE

2011-ON

'A' Clutch Proprietary High Energy (HT)

.062/1.57

Teeth

5.112

RH560285

View

845RE, 850RE D Clutch (Waved) HT Friction Clutch Plate

CHRYSLER 845RE, 850RE

2011-ON

D Clutch (Waved) Proprietary High Energy (HT)

.084/2.13

Teeth

5.814

RH560300

View

850RE B Brake (Waved) HT Friction Clutch Plate

CHRYSLER 850RE

2009-ON

B Brake (Waved)

.081/2.06

38/40

Teeth

6.792

RH560293

View

ZF 8HP45, 8HP51

2011-ON

A Clutch

.072/1.83

27/30

Teeth

5.404

511395

View

8HP45, 8HP50Z, 8HP50, 8HP51 B Steel Clutch Plate

ZF 8HP45, 8HP50Z, 8HP50, 8HP51

2011-ON

B Clutch

.071/1.80

Teeth

7.285

PART OF 68146826AA

511396

View

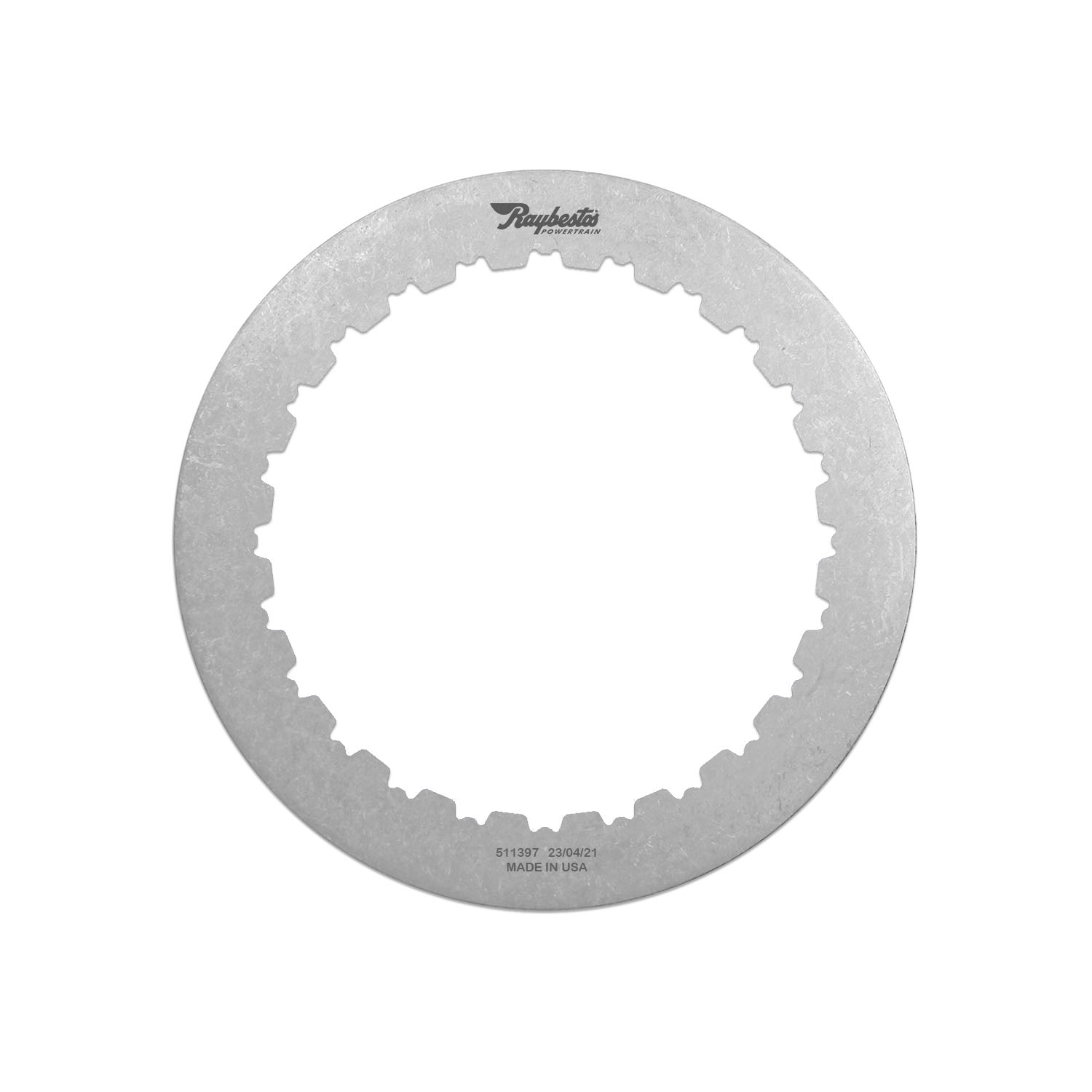

8HP45, 8HP50, 8HP50Z, 8HP51 C & E Steel Clutch Plate

ZF 8HP45, 8HP50, 8HP50Z, 8HP51

2011-ON

C, E Clutch

.082/2.08

Teeth

5.459

PART OF 68146863AA

511397

View

8HP45, 8HP50Z, 8HP50, 8HP51 D Steel Clutch Plate

ZF 8HP45, 8HP50Z, 8HP50, 8HP51

2011-ON

D Clutch

.082/2.08

Teeth

6.038

511398

View

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.

We are currently developing parts for the 8HP51 transmission.
