8HP70 Transmission Rebuild Kit Parts

The 8HP70 transmission is an 8-speed automatic transmission designed by ZF and manufactured by both ZF and Chrysler (TorqueFlite 8) with minimal differences. The 8HP70 is an extremely efficient transmission due to its wide gear range, fast-locking torque converter, and 8-speeds. The 8HP70 performs well under variety of vehicle speeds and loads. The 8HP70 maximizes fuel efficiency with its broad gear set and its light weight of just over 200 lbs. See the full Raybestos Powertrain 8HP70 transmission teardown video and parts listing below.

Transmission Specs

8-Speed

2009-ON

Gear Ratios: 1st - 4.71, 2nd - 3.14, 3rd - 2.10, 4th - 1.67, 5th - 1.29, 6th - 1, 7th - 0.84, 8th - 0.67, Reverse - 3.30

View Tech Resources >>

Exploded View >>

8HP70 Transmission Clutch Packs

8HP70, 8HP55 GPZ Friction Clutch Pack

ZF 8HP70, 8HP55

2009-ON

Performance

GPZ Friction Clutch Pack Module

Contents:

5 A Brake ID Spline (Flat) GPZ, 5 B Brake ID Spline (Flat) GPZ, 11 C & E OD Spline (Waved) GPZ, 4 D Brake ID Spline (Flat) GPZ

RGPZ-018

8HP70, 8HP55 HT Friction Clutch Pack

ZF 8HP70, 8HP55

2009-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

5 A Brake ID Spline (Flat) Proprietary HT, 5 B Brake ID Spline (Flat) Proprietary HT, 11 C & E Clutch OD Spline (Waved) Proprietary HT, 4 D Clutch (Waved) ID Spline Proprietary HT

RHT96-312

8HP70, 8HP75 Steel Clutch Pack

ZF 8HP70, 8HP75

2013-ON

Steel Clutch Pack Module

Contents:

5 - 5111010 A Clutch OD Spline 8HP55, 5 - 5111009 B Brake 8HP70, 4 - 5111004 D Clutch OD Spline, 11 - 5111005 E Clutch ID Spline

STMZF19

8HP70, 8HP75 Kolene Steel Clutch Pack

ZF 8HP70, 8HP75

2013-ON

Kolene Steel Clutch Pack Module

Contents:

5 - 51K1010 A Clutch OD Spline 8HP55, 5 - 51K1009 B Brake 8HP70, 4 - 51K1004 D Clutch OD Spline, 11 - 51K1005 E Clutch ID Spline

STMZF19K

8HP70 Transmission Filters

8HP45X, 8HP55A, 8HP55AH, 8HP70XH, 8HP90 (AL450 VW Amarok) Transmission Filter

ZF 8HP45X, 8HP55A, 8HP55AH, 8HP70XH, 8HP90 (AL450 VW Amarok)

2012-2014

Transmission Filter

016371

8HP55 / 0BK, 8HP70, 8HP50Z (4WD/AWD) Transmission Filter

ZF 8HP55 / 0BK, 8HP70, 8HP50Z (4WD/AWD)

2010-ON

Transmission Filter

515370

8HP70, 8HP75 Deep Pan Transmission Filter

ZF 8HP70, 8HP75

2010-ON

Deep Pan

Transmission Filter

515769

8HP70, 8HP75, 8HP50Z Shallow Pan OE Transmission Filter

ZF 8HP70, 8HP75, 8HP50Z

2011-ON

OE, Shallow Pan

Transmission Filter

515770

8HP70, 8HP75, 8HP50Z Shallow Pan Transmission Filter

ZF 8HP70, 8HP75, 8HP50Z

2011-ON

Economy, Shallow Pan, Removable

Transmission Filter

016770

No items found.

8HP70 Transmission Clutch Plates

8HP55, 8HP70, 8HP75, 8HP90 'A' Brake ID Spline (Flat) GPZ Friction Clutch Plate

ZF 8HP55, 8HP70, 8HP75, 8HP90

2009-ON

'A' Brake ID Spline (Flat) GPZ

.061/1.55

32

Teeth

5.743

OD

NA

GPZ300

8HP55, 8HP70 B Brake ID Spline (Flat) GPZ Friction Clutch Plate

ZF 8HP55, 8HP70

2009-ON

B Brake ID Spline (Flat) GPZ

.081/2.06

38/40

Teeth

7.808

OD

NA

GPZ305

8HP55, 8HP70, 8HP75, 8HP90 C & E OD Spline (Waved) GPZ Friction Clutch Plate

ZF 8HP55, 8HP70, 8HP75, 8HP90

2009-ON

C & E OD Spline (Waved) GPZ

.083/2.11

32

Teeth

6.69

OD

NA

GPZ310

8HP55, 8HP70, 8HP75, 8HP90 D Brake ID Spline (Flat) GPZ Friction Clutch Plate

ZF 8HP55, 8HP70, 8HP75, 8HP90

2009-ON

D Brake ID Spline (Flat) GPZ

.083/2.11

63

Teeth

6.777

OD

NA

GPZ315

8HP90 B Brake (Flat) GPZ Friction Clutch Plate

2013-ON

B Brake (Flat) GPZ

.085/2.16

38/40

Teeth

8.279

OD

NA

GPZ400

8HP55, 8HP70, 8HP90 'A' Brake ID Spline (Flat) HT Friction Clutch Plate

ZF 8HP55, 8HP70, 8HP90

2009-ON

'A' Brake ID Spline (Flat) Proprietary High Energy (HT)

.061/1.55

32

Teeth

5.743

OD

NA

RH560505

8HP55, 8HP70 B Brake ID Spline (Flat) HT Friction Clutch Plate

ZF 8HP55, 8HP70

2009-ON

B Brake ID Spline (Flat) Proprietary High Energy (HT)

.081/2.06

38/40

Teeth

7.808

OD

NA

RH560510

8HP55, 8HP70, 8HP90 C Cluth OD Spline (Waved) HT Friction Clutch Plate

ZF CHRYSLER 8HP55, 8HP70, 8HP90

2009-ON

C Cluth OD Spline (Waved) Proprietary High Energy (HT)

.083/2.11

32

Teeth

6.69

OD

NA

RH560515

8HP55, 8HP70 D Clutch (Waved) ID Spline HT Friction Clutch Plate

ZF CHRYSLER 8HP55, 8HP70

2009-ON

D Clutch (Waved) ID Spline Proprietary High Energy (HT)

.083/2.11

63

Teeth

6.777

OD

NA

RH560521

8HP55, 8HP70, 8HP75 D Clutch OD Spline Steel Clutch Plate

ZF 8HP55, 8HP70, 8HP75

2009-ON

D Clutch OD Spline

.078/1.98

30

Teeth

7.003

OD

NA

5111004

8HP55, 8HP70, 8HP75, 8HP90 E Clutch Steel Clutch Plate

ZF 8HP55, 8HP70, 8HP75, 8HP90

2009-ON

C & E Clutch

.082/2.08

24

Teeth

6.432

OD

NA

5111005

8HP70, 8HP75 B Brake Steel Clutch Plate

ZF 8HP70, 8HP75

2009-ON

B Brake

.071/1.80

36

Teeth

8.141

OD

NA

5111009

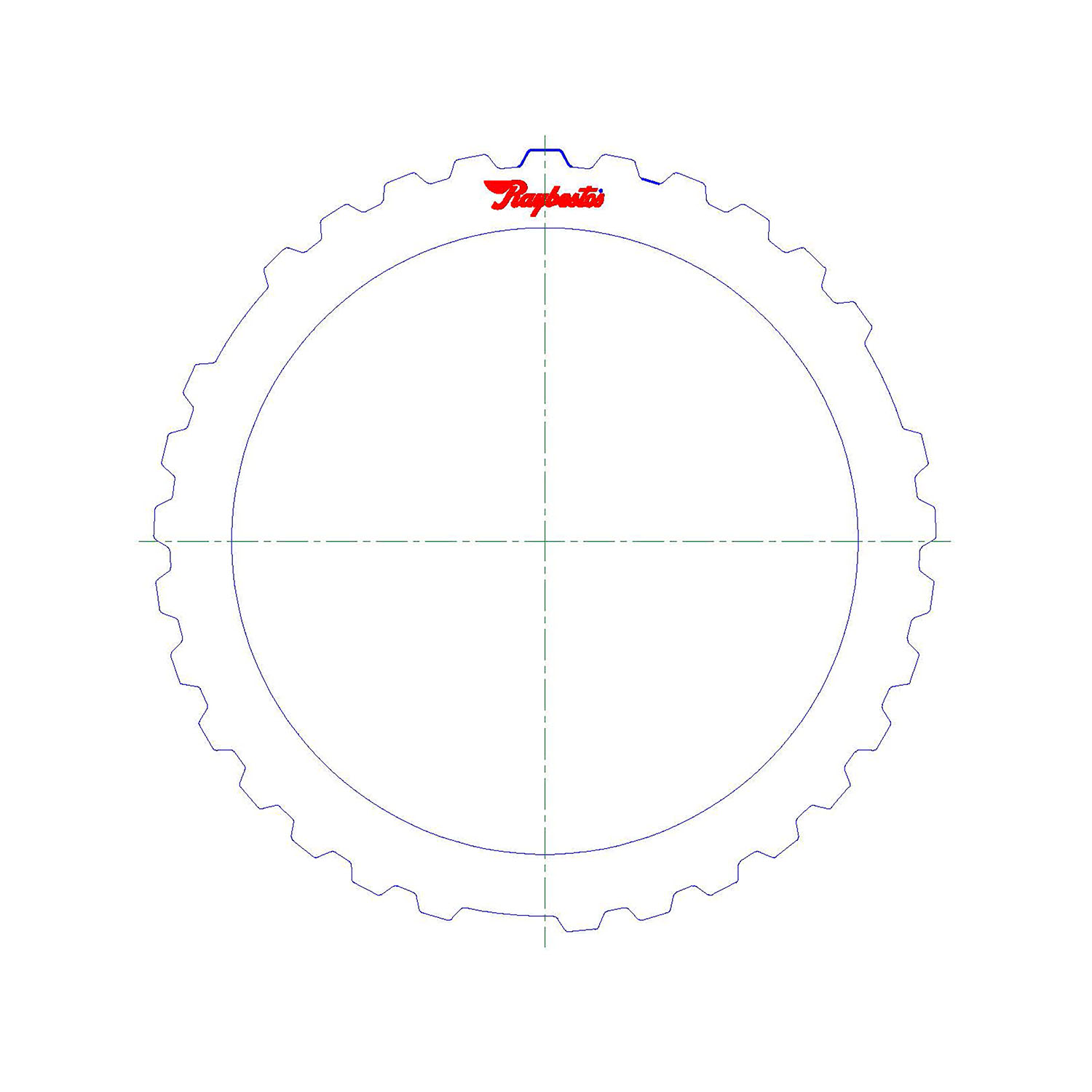

8HP55, 8HP70, 8HP75, 8HP90 'A' Clutch OD Spline Steel Clutch Plate

ZF 8HP55, 8HP70, 8HP75, 8HP90

2009-ON

A Clutch OD Spline 8HP55

.071/1.80

30/33

Teeth

6.042

OD

NA

5111010

8HP90 C Clutch ID Spline (.110") Steel Clutch Plate

2013-ON

C Clutch ID Spline

.110/2.80

24

Teeth

6.432

OD

NA

5111135

No items found.

No items found.

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
