A4BF3 Transmission Rebuild Kit Parts

View Tech Resources >>

Exploded View >>

A4BF3 Transmission Clutch Packs

A4BF3 Friction Clutch Pack

HYUNDAI / KIA A4BF3

2000-ON

Friction Clutch Pack Module

Contents:

5 Rear High Energy, 3 Forward/Direct High Energy, 6 Low/Reverse Brake High Energy, 5 Overdrive End High Energy

RCP96-170

A4BF3 Steel Clutch Pack

HYUNDAI / KIA A4BF3

1999-ON

Steel Clutch Pack Module

Contents:

1 Front Clutch, 1 Front Clutch, 4 Rear Clutch, 3 Low, Reverse Brake Clutch, 3 Overdrive, End Clutch

STMHYUND01

A43F3, A4BF3 Steel Clutch Pack

HYUNDAI / KIA A43F3, A4BF3

1999-ON

Steel Clutch Pack Module

Contents:

2 Front Clutch, 5 Rear Clutch, 4 Overdrive, End Clutch, 5 Low, Reverse Brake Clutch

STMHYUND02

A4BF3 Transmission Filters

A4BF3, A4AF-1 Transmission Filter

HYUNDAI / KIA A4BF3, A4AF-1

1999-ON

Transmission Filter

515932

No items found.

A4BF3 Transmission Clutch Plates

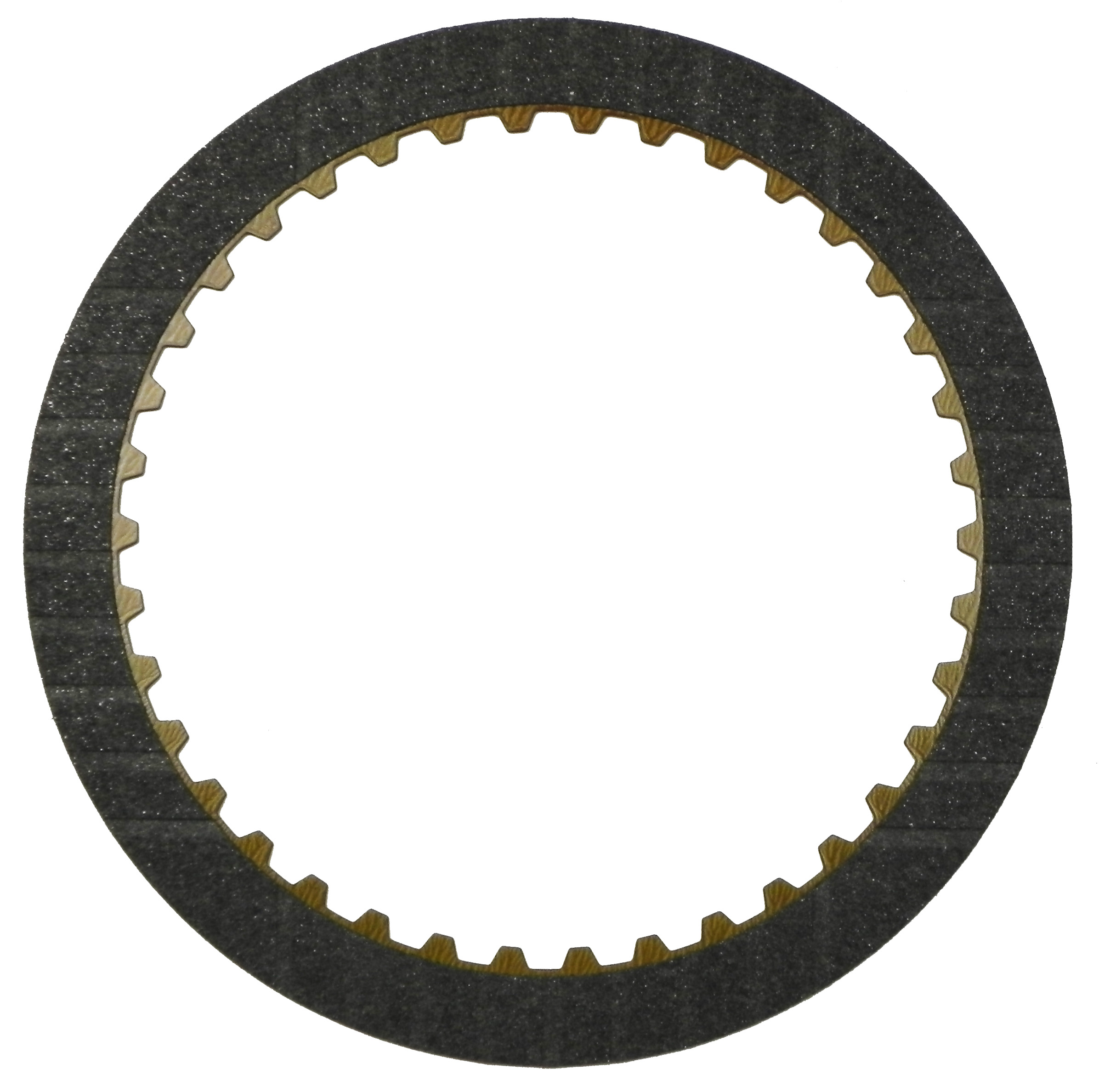

A4BF3 Rear High Energy Friction Clutch Plate

1999-ON

Rear Clutch High Energy

.067/1.70

38

Teeth

5

OD

45449-22770

R565125

A4BF3, KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A Forward, Direct High Energy Friction Clutch Plate

HYUNDAI / MITSUBISHI A4BF3, KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A

1985-ON

Forward, Direct High Energy

.074/1.88

38

Teeth

5

OD

45449-22770

R571700

A4BF3 Low, Reverse High Energy Friction Clutch Plate

1999-ON

Low, Reverse Brake High Energy

.072/1.83

51

Teeth

5.985

OD

45621-36061, 45621-36071

R565140

A4BF3 Overdrive, End Clutch High Energy Friction Clutch Plate

1999-ON

Overdrive, End Clutch High Energy

.065/1.65

36

Teeth

4.843

OD

45560-22761

R565120

KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A Front Direct Steel Clutch Plate

MITSUBISHI KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A

1992-ON

Front (Direct)

.120/3.05

24/26

Teeth

5.31

OD

45475-22700, 45475-37000, MD731585, MD739509

511069

KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A Front Steel Clutch Plate

MITSUBISHI KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A

1989-ON

Front (Direct)

.150/3.81

24

Teeth

5.303

OD

45475-36000, MD722557, MD722559

511080

A4BF3 Rear Steel Clutch Plate

1999-ON

Rear Clutch

.079/2.01

24/26

Teeth

5.295

OD

45451-22700

511020

KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A Low Reverse (.039") Steel Clutch Plate

MITSUBISHI KM 170 SERIES, A4AF1, F4A32A, F4A-32-A, W4A32A

1988-ON

Low, Reverse

.040/1.02

20

Teeth

6.454

OD

45622-36000, 45622-37000, MD727798

511081

A4BF3 Overdrive Steel Clutch Plate

1999-ON

Overdrive, End Clutch

.158/4.01

25

Teeth

5.09

OD

45561-22701

511019

A4BF3 Overdrive Steel Clutch Plate

1999-ON

Overdrive, End Clutch

.100/2.54

25

Teeth

5.09

OD

45561-28801

511018

No items found.

No items found.

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
