A6GF1 Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

A6GF1 Transmission Clutch Packs

A6GF1 HT Friction Clutch Pack
HYUNDAI / KIAA6GF1
2009-ON
(HT) Hybrid Technology Friction Clutch Pack Module
Contents:
4 3-5 Reverse SS ID Spline HT, 3 3-5 Reverse SS OD Spline (.083") HT, 1 3-5 Reverse SS OD Spline (.098) HT, 7 Overdrive HT, 4 Overdrive (Blue Drive) HT, 4 2-6 HT, 5 Low/Reverse HT
RHT96-320
View
A6GF1 Steel Clutch Pack
HYUNDAI / KIAA6GF1
2009-ON
Steel Clutch Pack Module
Contents:
3 Overdrive (.107"), 1 Overdrive (0.83") Bottom Plate, 3 Underdrive, 1 Overdrive (.090") Bottom Plate, 3 2-6 Brake (.083"), 1 2-6 Brake (.091"), 5 Low/Reverse (.0405"), 1 Low/Reverse (.089") Selective
STMHYUND08
View

A6GF1 Transmission Filters

A6GF1 Transmission Filter
HYUNDAI / KIAA6GF1
2009-ON
Transmission Filter
515336
View
A6GF1-2 Transmission Filter
HYUNDAI / KIAA6GF1-2
2015-ON
Transmission Filter
515340
View
A6GF1, A6GF1-2, A6LF2, A6MF1, A6MF2, A6MF2-2 Transmission Filter
HYUNDAI / KIAA6GF1, A6GF1-2, A6LF2, A6MF1, A6MF2, A6MF2-2
2016-ON
Transmission Filter
515342
View
No items found.

A6GF1 Transmission Clutch Plates

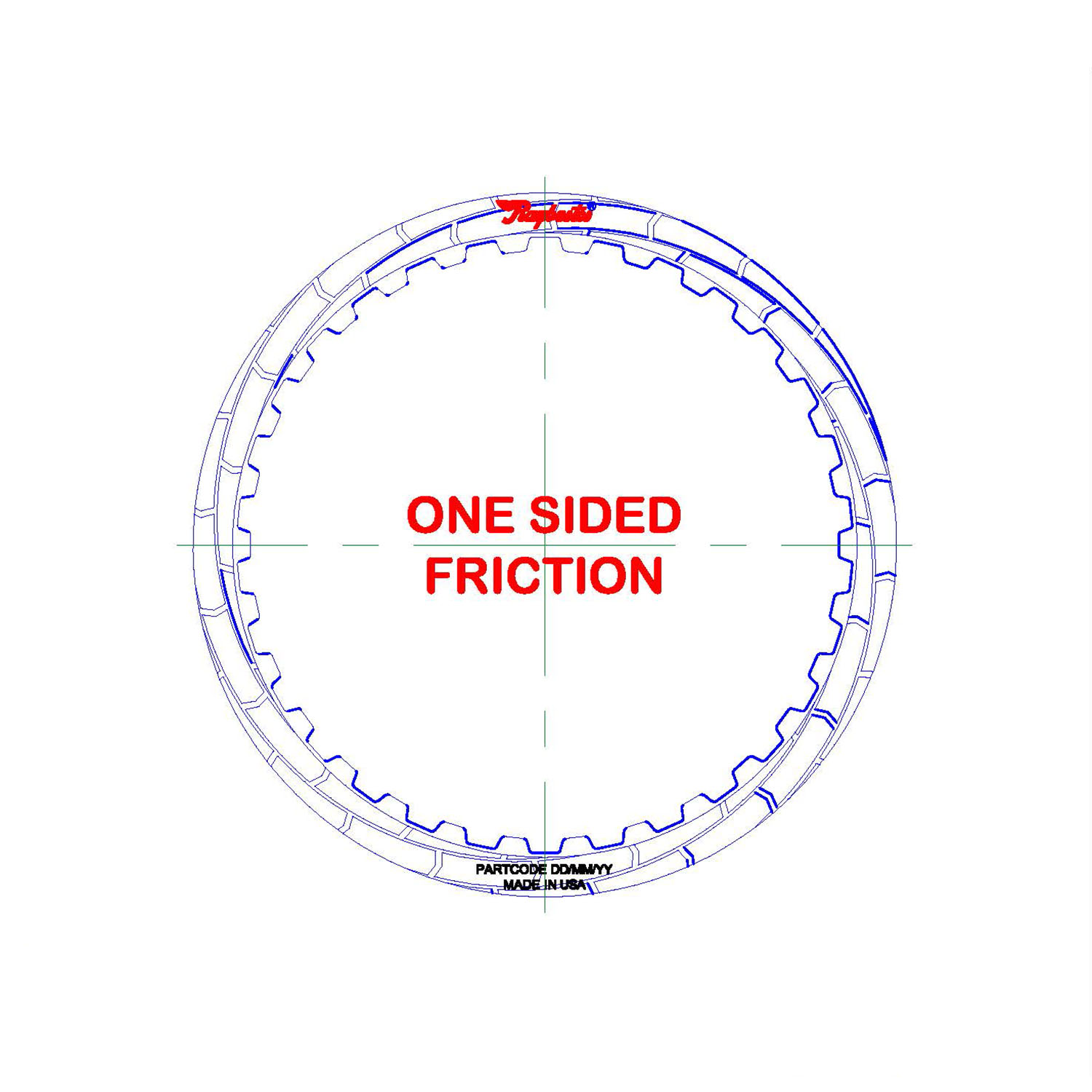

A6GF1 3-5, Reverse SS, ID Spline HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
3, 5, Reverse Single Sided, ID Spline Proprietary High Energy (HT) (.083")
.083/2.11
30
Teeth
4.955
OD
PART OF 45425-26000
RH560580
View
A6GF1 3-5, Reverse SS, OD Spline HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
3, 5, Reverse Single Sided, OD Spline Proprietary High Energy (HT) (.083")
.083/2.11
27/36
Teeth
5.19
OD
PART OF 45425-26000
RH560585
View
A6GF1 3-5, Reverse SS, OD Spline HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
3, 5, Reverse Single Sided, OD Spline Proprietary High Energy (HT)
.098/2.49
27/36
Teeth
5.19
OD
PART OF 45425-26000
RH560590
View
A6GF1 Overdrive (Blue Drive) HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
Overdrive (Blue Drive) Proprietary High Energy (HT)
.069/1.7526
36
Teeth
6.01
OD
PART OF 45525-26000
RH560695
View
6F24, A6MF1, A6MF2, A6GF1 Overdrive High Energy Friction Clutch Plate
CHRYSLER / HYUNDAI / KIA6F24, A6MF1, A6MF2, A6GF1
2009-ON
Overdrive Clutch High Energy
.065/1.65
36
Teeth
6.01
OD
45525-3B800 (KIT), 68192991AA (KIT)
R560655
View
A6GF1 2-6 (Waved) HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
2, 6 Proprietary High Energy (HT) (Waved)
.071/1.80
36
Teeth
6.675
OD
PART OF 45670-26600
RH560700
View
A6GF1 Low, Reverse HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
Low, Reverse Proprietary High Energy (HT) (Waved)
.071/1.80
36
Teeth
6.657
OD
PART OF 45641-26600
RH560705
View
A6GF1 Underdrive HT Friction Clutch Plate
HYUNDAI / KIAA6GF1
2009-ON
Underdrive Proprietary High Energy (HT)
.070/1.78
36
Teeth
6.3
OD
PART OF 45625-26610
RH560595
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Underdrive Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Underdrive F4A41, F4A42
.071/1.80
20/30
Teeth
5.62
OD
45527-39000
511021
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Overdrive Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Overdrive F4A41, F4A42
.098/2.49
20/30
Teeth
5.62
OD
45423-39010
511022
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 2nd Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
2nd Brake F4A41, F4A42
.098/2.49
17
Teeth
6.605
OD
45626-39000
511024
View
A5GF1 Reverse Steel Clutch Plate
HYUNDAI / KIAA5GF1
2005-ON
Reverse Clutch
.071/1.80
20/30
Teeth
6.125
OD
45446-39000
511023
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Low Reverse Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Low, Reverse F4A41, F4A42
.040/1.02
17
Teeth
6.605
OD
45633-39000
511026
View
R4A51, V4A51, R5A51, V5A51 Underdrive Steel Clutch Plate
MITSUBISHIR4A51, V4A51, R5A51, V5A51
1997-2006
Underdrive
.071/1.80
20
Teeth
6.09
OD
45527-39500
511027
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Overdrive Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Overdrive F4A51
.098/2.49
20
Teeth
6.09
OD
45423-39700
511028
View

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
