A6LF2 Transmission Rebuild Kit Parts

View Tech Resources >>

Exploded View >>

A6LF2 Transmission Clutch Packs

A6LF2 HT Friction Clutch Pack

HYUNDAI / KIA A6LF2

2009-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

5 3, 5 Reverse Single Side, ID Spline Proprietary HT, 5 Overdrive Proprietary HT, 1 3, 5 Reverse Single Sided, (.090") OD Spline Proprietary HT, 4 3, 5 Reverse Single Sided (.079") OD Spline Proprietary HT, 3 Underdrive Proprietary HT, 4 2nd, 6th Proprietary HT, 5 Low Reverse Proprietary HT

RHT96-303

A6LF2 Steel Clutch Pack

HYUNDAI / KIA A6LF2

2009-ON

Steel Clutch Pack Module

Contents:

4 Overdrive, 2 Underdrive, 1 Underdrive (Bottom), 3 2nd, 6th Clutch, 5 Low, Reverse Clutch

STMHYUND07

A6LF2 Transmission Filters

A6LF1, A6LF2 Transmission Filter

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Transmission Filter

515337

A6GF1, A6GF1-2, A6LF2, A6MF1, A6MF2, A6MF2-2 Transmission Filter

HYUNDAI / KIA A6GF1, A6GF1-2, A6LF2, A6MF1, A6MF2, A6MF2-2

2016-ON

Transmission Filter

515342

No items found.

A6LF2 Transmission Clutch Plates

A6LF1, A6LF2 3-5, Reverse SS, ID Spline HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

3, 5, Reverse Single Sided, ID Spline Proprietary High Energy (HT)

.078/1.98

30

Teeth

5.619

OD

PART OF 454253B000

RH560660

A6LF1, A6LF2 Overdrvide HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Overdrvide Proprietary High Energy (HT)

.065/1.65

36

Teeth

6.678

OD

PART OF 455253B000

RH560675

A6LF1, A6LF2 3-5, Reverse SS, OD Spline (.090") HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

3, 5, Reverse Single Sided, (.090") OD Spline Proprietary High Energy (HT)

.090/2.29

27/36

Teeth

5.856

OD

PART OF 454253B000

RH560670

A6LF1, A6LF2 3-5, Reverse SS, OD Spline (.079") HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

3, 5, Reverse Single Sided, (.079") OD Spline Proprietary High Energy (HT)

.079/2.01

27/36

Teeth

5.856

OD

PART OF 454253B000

RH560665

A6LF1, A6LF2 2nd, 6th HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

2nd, 6th Proprietary High Energy (HT)

.071/1.80

36

Teeth

7.441

OD

PART OF 456703B000

RH560680

A6LF1, A6LF2 Low, Reverse HT Friction Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Low, Reverse Proprietary High Energy (HT)

.069/1.75

40

Teeth

7.501

OD

PART OF 45641-3B000

RH560690

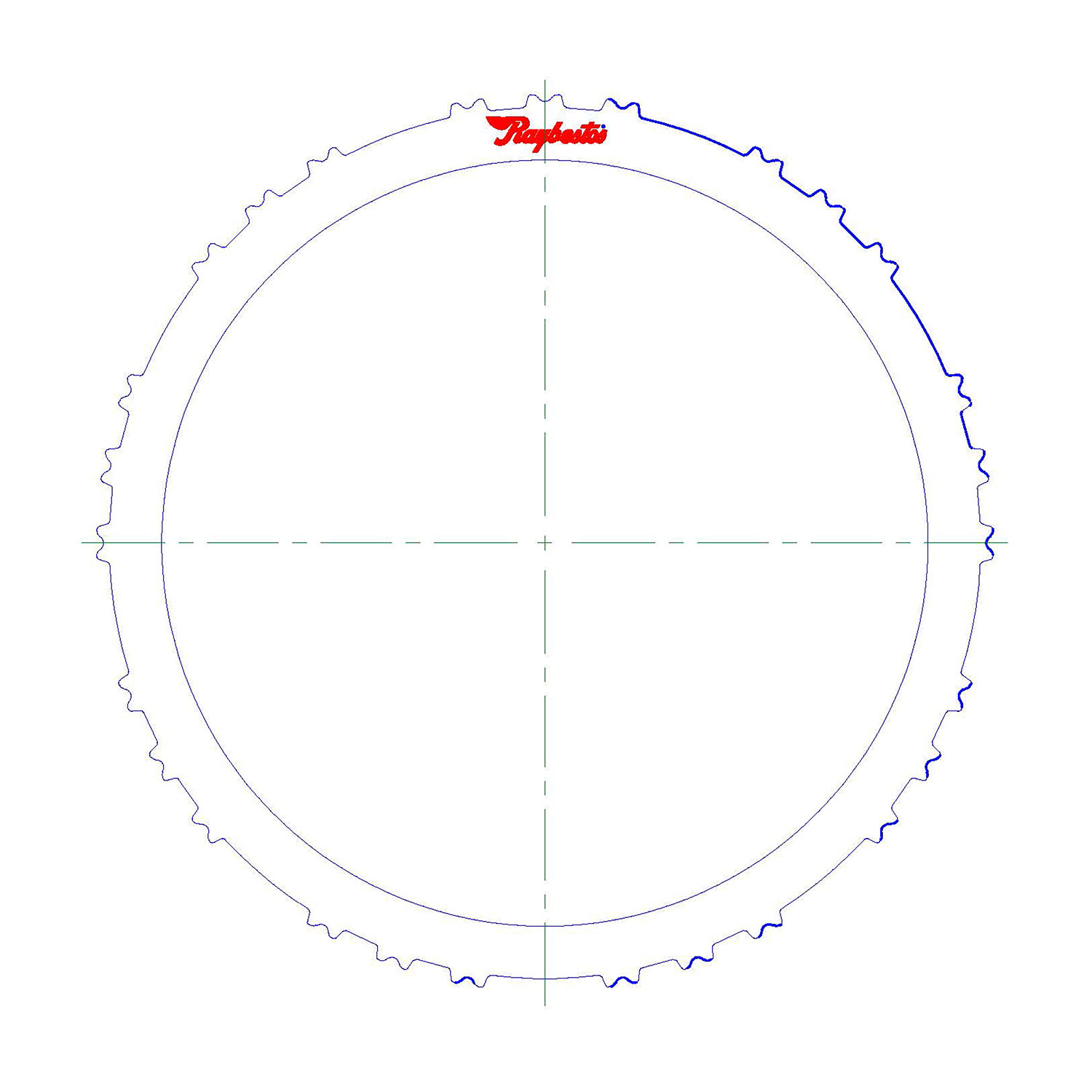

A6LF1, A6LF2 Overdrive Steel Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Overdrive

.111/2.82

27/36

Teeth

6.922

OD

PART OF 455253B000

511342

A6LF1, A6LF2 Underdrive (Notched) Steel Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Underdrive

.079/2.01

7

Teeth

7.824

OD

PART OF 456253B001

511343

A6LF1, A6LF2 Underdrive Bottom Steel Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Underdrive (Bottom)

.079/2.01

7

Teeth

7.824

OD

PART OF 456253B001

511344

A6LF1, A6LF2 2-6 Steel Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

2nd, 6th Clutch

.099/2.51

7

Teeth

7.825

OD

PART OF 456703B000

511317

A6LF1, A6LF2 Low Reverse (Notched Teeth) Steel Clutch Plate

HYUNDAI / KIA A6LF1, A6LF2

2009-ON

Low, Reverse Clutch

.040/1.02

15/20

Teeth

7.864

OD

PART OF 456413B000

511303

No items found.

No items found.

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
