A8LR1 Transmission Rebuild Kit Parts

The A8LR1 transmission is an eight-speed automatic transmission designed by Hyundia/Kia that debuted in 2008 and is rated up to 40 kg⋅m (392 N⋅m; 289 lbf⋅ft). The A8LR1 transmission weighs in at 160.5 pounds and is found in over 118,000 vehicles on the road today including the Genesis, K900, and G80.

Transmission Specs
8-Speed
2008-2016
Gear Ratios: 1st - 3.964 or 3.665, 2nd 2.468 or 2.396, 3rd - 1.610, 4th - 1.176 or 1.190, 5th - 1, 6th - .832 or .826, 7th - .652 or .643, 8th .565 or .556, Reverse - 2.273
View Tech Resources >>
Exploded View >>

A8LR1 Transmission Clutch Packs

A8LR1 GPZ Friction Clutch Pack Module
HYUNDAI / KIAA8LR1
2012-ON
Performance
Friction Clutch Pack Module
Contents:
(5) GPZ793 L/R Brake SS ID, (4) GPZ794 L/R Brake SS OD, (1) GPZ795 L/R Brake SS OD Bottom, (5) GPZ796 6th Clutch, (4) GPZ797 2-7 Brake SS ID, (3) GPZ798 2-7 Brake SS OD, (1) GPZ799 2-7 Brake SS OD Bottom, (7) GPZ800 3-5-R SS ID, (7) GPZ801 3-5-R SS OD, (7) GPZ802 U/D SS ID, (7) GPZ803 U/D SS OD, (6) GPZ804 4th Clutch SS ID, (6) GPZ805 4th Clutch SS OD
RGPZ-287
View
A8LR1 Steel Clutch Pack Module
HYUNDAI / KIAA8LR1
2012-ON
Steel Clutch Pack Module
Contents:
(5) 5111365 6th Clutch Steel Clutch Plates
STMHYUND10
View

A8LR1 Transmission Filters

A8TR1 / A8LR1 Transmission Filter
HYUNDAI / KIAA8TR1 / A8LR1
2008-2016
Transmission Filter
515335
View
No items found.

A8LR1 Transmission Friction Clutch Plates

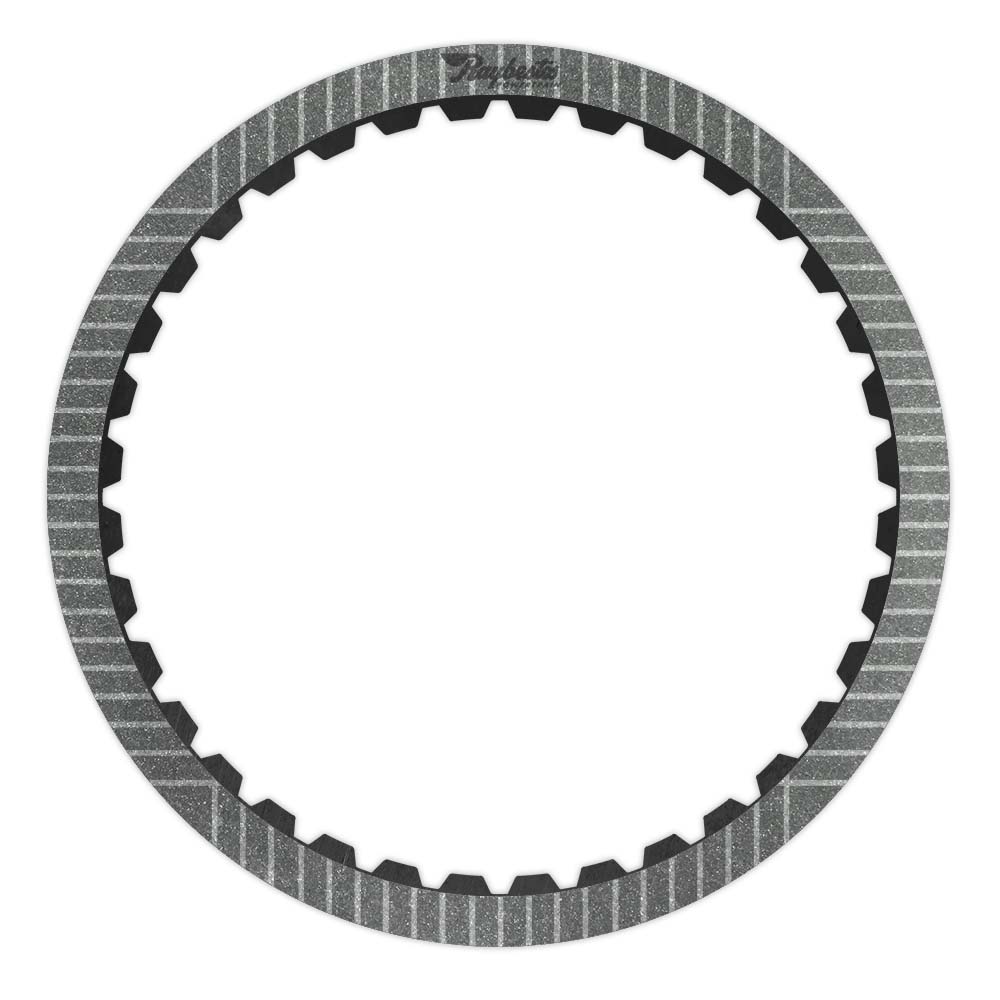

A8LR1 L/R Brake SS ID GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
L/R Brake SS ID
0.064
36
Teeth
7.0185
OD
GPZ793
View
A8LR1 L/R Brake SS OD GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
L/R Brake SS OD
0.068
24/30
Teeth
7.382
OD
GPZ794
View
A8LR1 L/R Brake SS OD Bottom GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
L/R Brake SS OD Bottom
0.134
24/30
Teeth
7.382
OD
GPZ795
View
A8LR1 6TH Clutch GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
6TH Clutch
0.07
30
Teeth
6.587
OD
GPZ796
View
A8LR1 2-7 Brake SS ID GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
2-7 Brake SS ID
0.11
30
Teeth
6.866
OD
GPZ797
View
A8LR1 2-7 Brake SS OD GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
2-7 Brake SS OD
0.11
23/30
Teeth
7.234
OD
GPZ798
View
A8LR1 2-7 Brake SS OD GPZ Bottom Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
2-7 Brake SS OD Bottom
0.134
23/30
Teeth
7.234
OD
GPZ799
View
A8LR1 3-5-R SS ID GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
3-5-R SS ID
0.071
30
Teeth
5.69
OD
GPZ800
View
A8LR1 3-5-R SS OD GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
3-5-R SS OD
0.071
30
Teeth
5.931
OD
GPZ801
View
A8LR1 U/D SS ID GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
U/D SS ID
0.06
48
Teeth
5.309
OD
GPZ802
View
A8LR1 U/D SS OD GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
U/D SS OD
0.06
36
Teeth
5.553
OD
GPZ803
View
A8LR1 4TH Clutch SS ID GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
4TH Clutch SS ID
0.076
30
Teeth
5.648
OD
GPZ804
View
A8LR1 4TH Clutch SS OD GPZ Friction Clutch Plate
HYUNDAI / KIAA8LR1
2012-ON
4TH Clutch SS OD
0.076
30
Teeth
5.929
OD
GPZ805
View

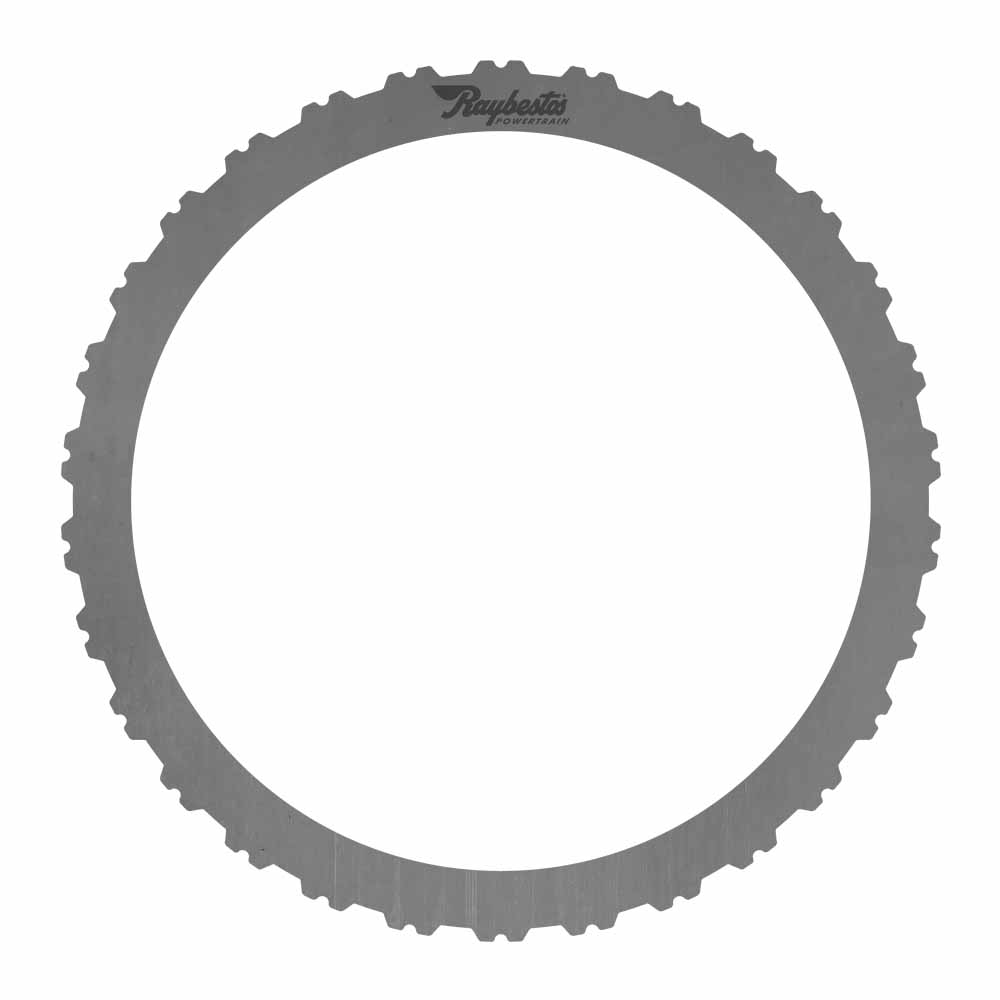

A8LR1 6th Clutch Steel Clutch Plate
HYUNDAI / KIAA8LR1
2011-ON
6th Clutch
.071
30
Teeth
6.827
OD
5111365
View

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
