AW55-50SN Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

AW55-50SN Transmission Clutch Packs

AW55-50SN, AW55-51SN Friction Clutch Pack
AISIN WARNERAW55-50SN, AW55-51SN
1999-2007
Friction Clutch Pack Module
Contents:
4 B2 2nd Brake (Waved) High Energy, 5 B3 1st, Reverse AW55-50SN Tan, 4 C1 Forward Black Radial, 4 C3 Underdrive (Waved) High Energy, 6 B4 5th Brake Tan, 7 B1 Coast C2 Direct (Flat) High Energy
RCP96-026
View
AW55-50SN Steel Clutch Pack
AISIN WARNERAW55-50SN
1999-2007
Steel Clutch Pack Module
Contents:
4 C1 Forward, 4 C3 Underdrive, 4 B2 2nd Brake, 1 B2 2nd Brake, 4 C2 Direct, 3 B1 Coast, 4 B3 1st, Reverse, 6 B4 5th Brake
STMAISIN06
View

AW55-50SN Transmission Filters

A40, A41, AW55, BW55 Transmission Filter
TOYOTAA40, A41, AW55, BW55
1974-1981
Transmission Filter
515800
View
AW55-50SN, AW55-51SN, AF23, AF33 Transmission Filter
AISIN WARNERAW55-50SN, AW55-51SN, AF23, AF33
2003-2007
Transmission Filter
515886
View
AW55-50SN, AW55-51SN, AF23, AF33 Transmission Filter
AISIN WARNERAW55-50SN, AW55-51SN, AF23, AF33
1999-2007
Transmission Filter
515887
View
No items found.

AW55-50SN Transmission Clutch Plates

AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 B2 2nd (Waved) High Energy Friction Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B2 2nd Brake (Waved) High Energy
.066/1.68
40
Teeth
6.3
OD
24220537
R572657
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 B3 1st, Reverse Friction Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B3 1st, Reverse AW55-50SN
.068/1.73
33
Teeth
6.299
OD
90348808
R572520
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 C1 Forward Friction Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
C1 Forward
.067/1.70
49
Teeth
5.375
OD
24220650
R572665
View
AW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE C2 Direct, C3 (LM) Underdrive High Energy Friction Clutch Plate
AISIN WARNERAW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE
1999-2007
C2 Direct, C3 (LM) Underdrive High Energy
.067/1.70
34
Teeth
4.48
OD
24220778
R572650
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 B4 5th Brake Friction Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B4 5th Brake
.068/1.73
47
Teeth
5.55
OD
24220563
R572660
View
AW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE B1 Coast, C3 (LE) Underdrive High Energy Friction Clutch Plate
AISIN WARNERAW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE
1989-2007
B1 Coast, C3 (LE) Underdrive High Energy
.068/1.73
34
Teeth
4.262
OD
24220648, 90542422
R572500
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 Forward Steel Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
C1 Forward
.079/2.01
12
Teeth
5.6
OD
24220649
511702
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 4-5 Steel Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
C3 Underdrive
.071/1.80
18
Teeth
4.7
OD
24220777
511701
View
AW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE 2nd Steel Clutch Plate
AISIN WARNERAW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE
1999-2007
B2 (LM) 2nd Brake
.071/1.80
10
Teeth
6.66
OD
24220536
511703
View

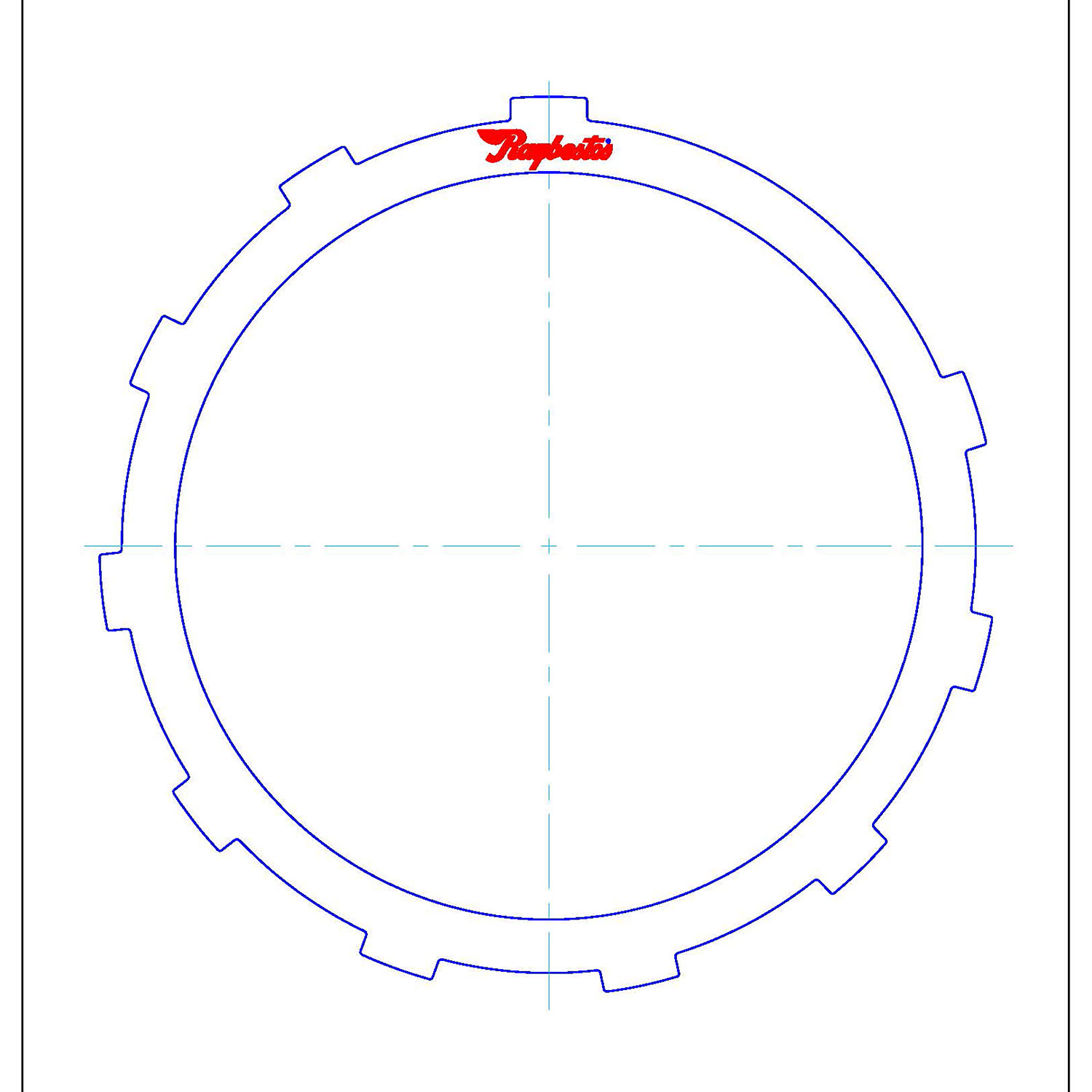

AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 2nd Steel Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B2 2nd Brake
.157/3.99
10
Teeth
6.655
OD
24220523
511751
View
AW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE Forward Steel Clutch Plate
AISIN WARNERAW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE
1989-1998
C2 Direct
.071/1.80
12
Teeth
4.568
OD
24220647, 7-11-396, 90348774
511990
View
AW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE 2nd Coast Underdrive Steel Clutch Plate
AISIN WARNERAW50-40LE, AW50-40LM, AW50-41LE, AW50-42LE
1989-2007
B1 Coast
.071/1.80
8
Teeth
4.57
OD
24220531, 7-11-398, 90348787
511994
View
AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 1st Reverse Steel Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B3 1st, Reverse
.071/1.80
13
Teeth
6.65
OD
24220500, 35884-55A010
511724
View

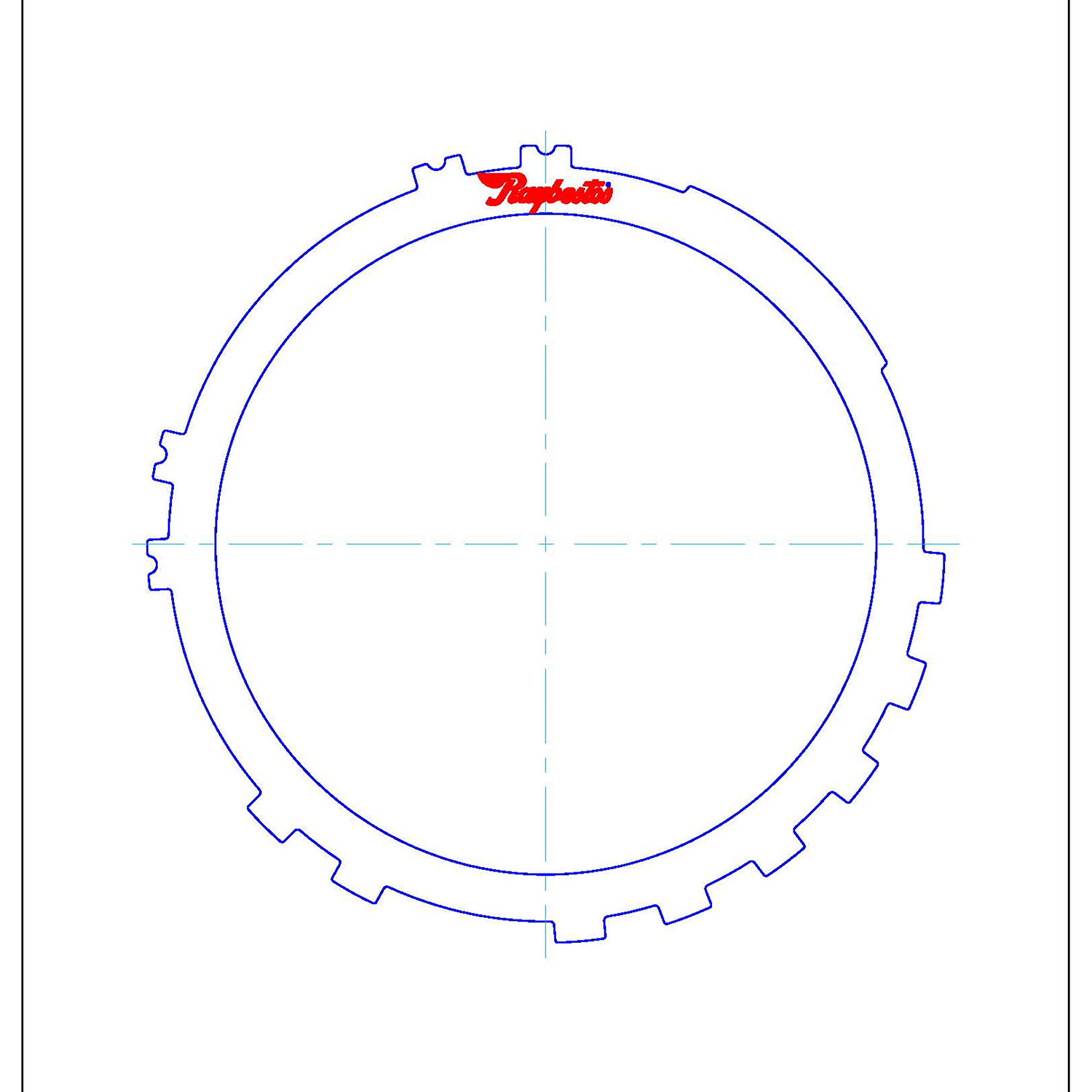

AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 Rear Steel Clutch Plate
AISIN WARNER / NISSANAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
B4 5th Brake
.071/1.80
12
Teeth
5.905
OD
24220562, 35632-55A010
511723
View

AW55-50SN Transmission Bands

AW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45 3rd Transmission Band
AISIN WARNERAW55-50SN, AW55-51SN, AF33-5, M09, RE5F22A, M45
1999-2007
3rd
513834
View

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
