AW80-40LE Transmission Rebuild Kit Parts

The AW80-40LE automatic transmission also known as the U440E is a 4-speed automatic transmission is used in Toyota vehicles. The AW80-40LE was designed for front-wheel drive sedans. See the full Raybestos Powertrain Aw80-40LE transmission parts listing below.

Transmission Specs
4-Speed
2004-ON
Gear Ratios: 1st - 2.87, 2nd - 1.56, 3rd - 1, 4th - .69, Reverse - 2.3
View Tech Resources >>
Exploded View >>

AW80-40LE Transmission Clutch Packs

AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS Friction Clutch Pack
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
Friction Clutch Pack Module
Contents:
2 B1 Overdrive, 2nd Brake High Energy, 2 B2 2nd Brake High Energy, 4 B3 Low/Reverse Brake Tan, 2 C3 Reverse High Energy, 2 C2 Direct High Energy, 4 C1 Forward High Energy
RCP96-199
View
AW81-40LE (U441E) Steel Clutch Pack
AISIN WARNERAW81-40LE (U441E)
2004-ON
Steel Clutch Pack Module
Contents:
1 B1 Overdrive, 2nd Brake, 1 B1 Overdrive, 2nd Brake, 1 B1 Overdrive, 2nd Brake, 2 B2 2nd Brake, 4 B3 Low, Reverse Brake, 2 C2 Direct, 2 C3 Reverse, 4 C1 Forward
STMAISIN09
View

AW80-41LE Transmission Filters

AW80-40LE (U440E) Transmission Filter
AISIN WARNERAW80-40LE (U440E)
2001-2010
Transmission Filter
515539
View
No items found.

AW80-40LE Transmission Clutch Plates

AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS C1 Forward High Energy Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C1 Forward High Energy
.070/1.78
30
Teeth
4.414
OD
93741571
R572670
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS C3 Reverse High Energy Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C3 Reverse High Energy
.072/1.83
30
Teeth
4.62
OD
93741611
R572675
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS C2 Direct High Energy Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C2 Direct High Energy
.072/1.83
36
Teeth
4.68
OD
93741600
R572680
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS B1 Overdrive, 2nd Brake High Energy Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B1 Overdrive, 2nd Brake High Energy
.072/1.83
36
Teeth
6.61
OD
93741449
R572685
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS B3 Low, Reverse Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B3 Low, Reverse Brake
.070/1.78
48
Teeth
5.655
OD
93741616, 93744334
R572690
View

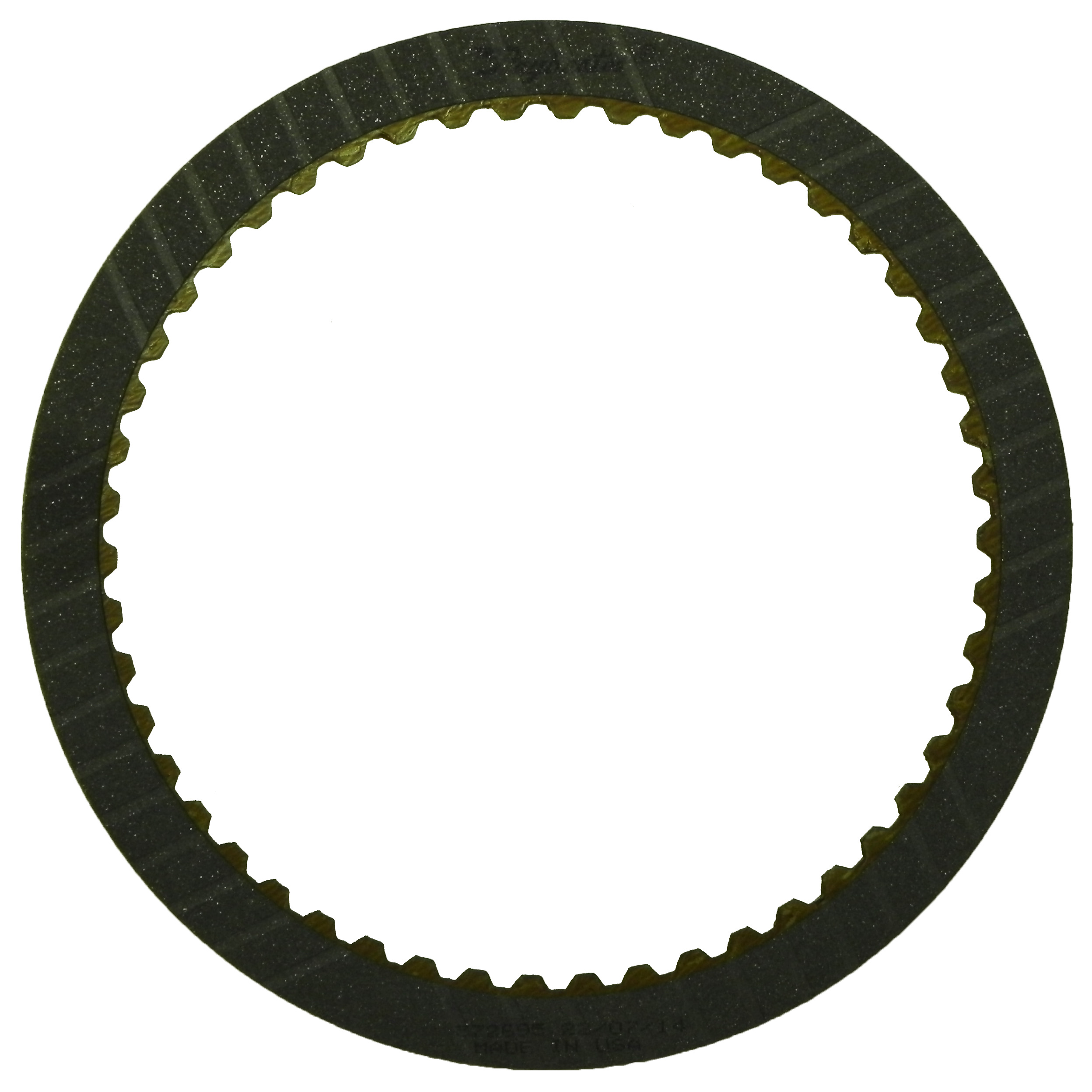

AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS B2 2nd High Energy Friction Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B2 2nd Brake High Energy
.072/1.83
50
Teeth
6.062
OD
93741615
R572695
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS B2 Overdrive 2nd Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B1 Overdrive, 2nd Brake (Apply)
.086/2.18
12, 20
Teeth
6.93
OD
93741442
511511
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS 1st Reverse Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B3 Low, Reverse Brake
.070/1.78
12
Teeth
6.098
OD
93741618
511512
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS Forward Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C1 Forward
.070/1.78
18/24
Teeth
4.723
OD
93741572
511513
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS C3 Reverse Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C3 Reverse
.070/1.78
24
Teeth
4.888
OD
93741588
511514
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS Overdrive 2nd Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B1 Overdrive, 2nd Brake
.070/1.78
12, 20
Teeth
6.93
OD
93741450
511515
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS 2nd Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B2 2nd Brake
.079/2.01
12, 20
Teeth
6.407
OD
93741617
511516
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS 2nd Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
B1 Overdrive, 2nd Brake
.197/5.00
12, 20
Teeth
6.935
OD
93741447
511517
View
AW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS Direct Steel Clutch Plate
AISIN WARNERAW80-40LE (U440E), AW81-40LE (U441E), AW80-40LS
2004-ON
C2 Direct
.070/1.78
16
Teeth
4.937
OD
93741586
511518
View

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
