E4OD Transmission Rebuild Kit Parts

The E4OD transmission is Ford's first electronically controlled automatic transmission designed to increase fuel economy in heavy duty F-Series trucks and E-Series vans. Raybestos Powertrain GPZ friction clutch plates handle the heat to help keep the E4OD transmission cool and increase the overall durability of the unit. See more E4OD transmission product details below.

Transmission Specs
4-Speed
1989-2005
Gear Ratios: 1st - 2.71, 2nd - 1.54, 3rd - 1, 4th - .71
View Tech Resources >>
Exploded View >>

E4OD Transmission Clutch Packs

E4OD Friction Clutch Pack
FORDE4OD
1997-1998
Friction Clutch Pack Module
Contents:
6 Low/Reverse Tan Radial, 5 Direct, 2nd Design Tan, 3 Overdrive Tan, 3 Coast Graphitic, 3 Intermdiate High Energy, 4R100 Except with Diode, 4 Forward, Hardened Core Tan
RCP96-077
View
E4OD Friction Clutch Pack
FORDE4OD
1989-1997
Friction Clutch Pack Module
Contents:
6 Low/Reverse Tan, 5 Direct Tan, 4 Overdrive Tan, 2 Coast Graphitic, 3 Intermediate High Energy, 4 Forward Tan
RCP96-094
View
E4OD GEN 2 Blue Friction Clutch Pack
FORDE4OD
1997
Performance
GEN 2 Blue Plate Special® Friction Clutch Pack Module
Contents:
6 Low/Reverse GEN-2 blue, 5 Direct GEN-2 blue, 3 Overdrive GEN-2 blue, 2 Coast GEN-2 blue, 3 Intermediate GEN-2 blue, 5 Forward GEN-2 blue w/hardened steel core
RCPBP-33
View
E4OD Stage-1 Friction Clutch Pack
FORDE4OD
1997-ON
Performance
Stage-1 Friction Clutch Pack Module
Contents:
6 Low/Reverse Stage-1 Red, 5 Direct Stage-1 Red, 3 Overdrive Stage-1 Red, 2 Coast Stage-1 Red, 3 Intermediate Stage-1 Red, 5 Forward Stage-1 Red w/hardened steel core
RCPS-33
View
E4OD Stage-1 Friction Clutch Pack
FORDE4OD
1989-1996
Performance
Stage-1 Friction Clutch Pack Module
Contents:
6 Low/Reverse Stage-1 Red, 5 Direct Stage-1 Red, 3 Overdrive Stage-1 Red, 2 Coast Stage-1 Red, 3 Intermediate Stage-1 Red, 5 Forward Stage-1 Red w/hardened steel core
RCPS-37
View
E4OD, 4R100 Friction Clutch Pack
FORDE4OD, 4R100
1998-ON
Friction Clutch Pack Module
Contents:
6 Low/Reverse Tan, 5 Direct 2nd Design Tan, 3 Overdrive Tan, 3 Coast Graphitic, 3 Intermediate High Energy, 4R100 Except with Diode, 4 Forward Hardened Core Tan
RCP96-091
View
E4OD, 4R100 GEN 2 Blue Friction Clutch Pack
FORDE4OD, 4R100
1989-1996
Performance
GEN 2 Blue Plate Special® Friction Clutch Pack Module
Contents:
6 Low/Reverse GEN 2 Blue Race Product, 5 Direct Gen 2 Blue Race Product, 3 Overdrive GEN 2 Race Product, 2 Coast GEN 2 Blue Race Product, 3 Intermediate GEN 2 Blue Race Product, 5 Forward GEN 2 Blue Race Product w/hardened steel core
RCPBP-37
View
E4OD Steel Clutch Pack
FORDE4OD
1989-ON
Steel Clutch Pack Module
Contents:
8 Forward, Direct, 2 Coast, 6 Reverse, 2 Overdrive Selective, 2 Intermediate
000546
View
E4OD Kolene® Steel Clutch Pack
FORDE4OD
1989-ON
Kolene® Steel Clutch Pack Module
Contents:
3 Forward Selective Kolene® High Performance
80K047
View
E4OD Kolene® Steel Clutch Pack
FORDE4OD
1989-ON
Kolene® Steel Clutch Pack Module
Contents:
2 Overdrive Kolene® High Performance, 3 Intermediate Kolene® High Performance, 6 Reverse Kolene® High Performance, 2 Coast Kolene® High Performance, 11 Forward, Direct Kolene® High Performance
STMFORD05K
View
E4OD, 4R100 Kolene® Steel Clutch Pack
FORDE4OD, 4R100
1989-ON
Kolene® Steel Clutch Pack Module
Contents:
5 Direct C High Performance
80K042
View
C4 Steel Clutch Pack
FORDC4
1989-ON
Steel Clutch Pack Module
Contents:
9 Forward Direct .080" THK
STMFORD001
View
E4OD, 4R100 9 Forward & Direct Steel Clutch Pack
FORDE4OD, 4R100
1997-ON
Steel Clutch Pack Module
Contents:
2 Overdrive, 6 Reverse, 5 Intermediate, 8 Forward, Direct, 2 Coast
STMFORD15
View

E4OD Transmission Filters

E4OD, 4R100 Transmission 4x4 Accumulator Filter
FORDE4OD, 4R100
1989-ON
Transmission 4x4 Accumulator Filter
514210
View
E4OD, 4R100 Transmission Shift Filter
FORDE4OD, 4R100
1989-ON
Transmission Shift Filter
514211
View
E4OD, 4R100 (2WD) Transmission Filter
FORDE4OD, 4R100 (2WD)
1988-2005
Transmission Filter
515042
View
E4OD, 4R100 (4WD) Transmission Filter
FORDE4OD, 4R100 (4WD)
1988-2005
Transmission Filter
515044
View
E4OD, 4R100 Stock Depth Deep Transmission Pan
FORDE4OD, 4R100
1996-2005
Transmission Pan
RPE4OD
View

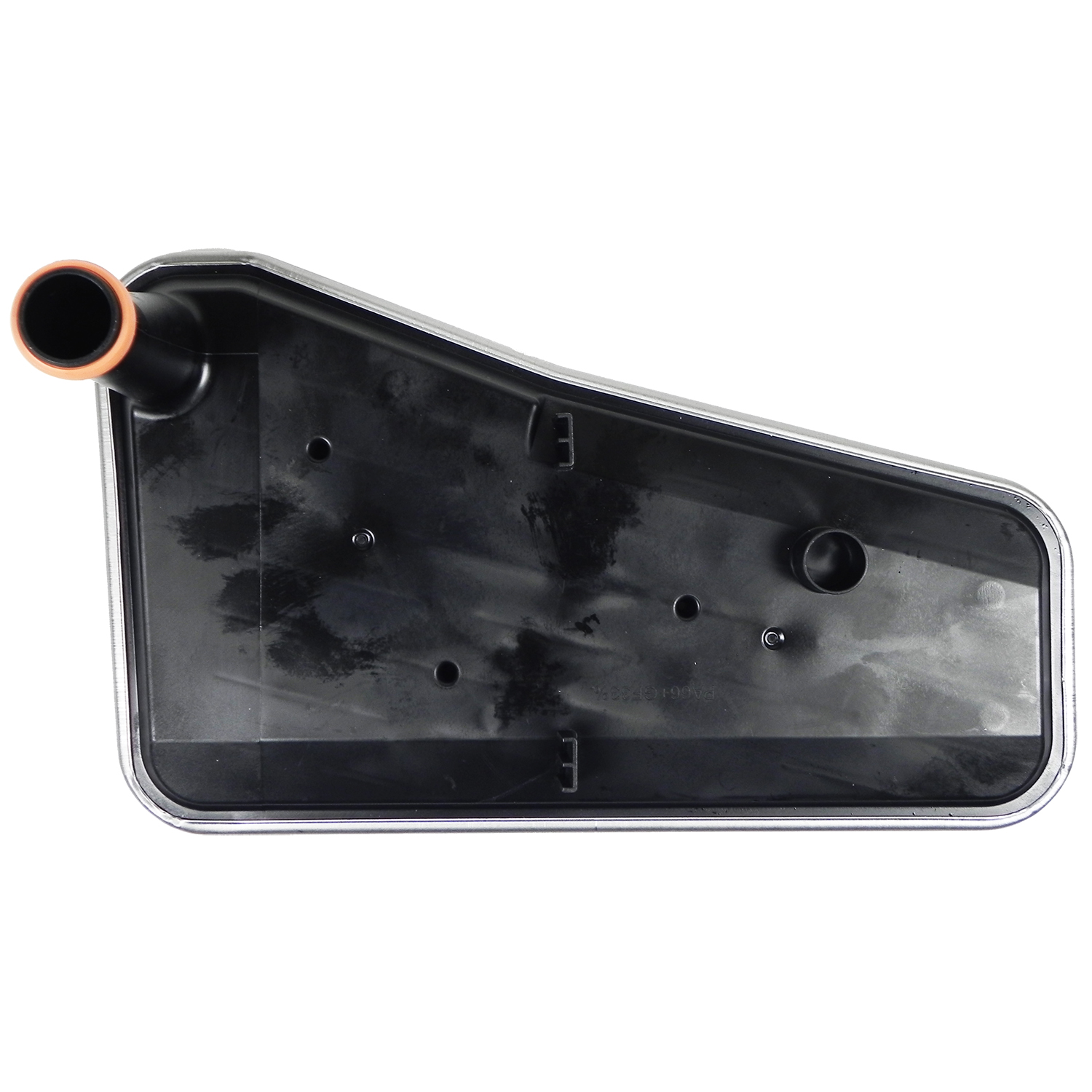

E4OD 2WD Shallow Pan Economy Filter
FordE4OD
1989-2005
Transmission Filter
016043
View
E4OD 4WD Deep Pan Economy Transmission Filter
FordE4OD
1989-2005
Transmission Filter
016045
View
E4OD, 4R100 (2WD) Economy Transmission Filter
FORDE4OD, 4R100 (2WD)
1988-2005
Transmission Filter
016042
View
E4OD, 4R100 (4WD) Economy Transmission Filter
FORDE4OD, 4R100 (4WD)
1988-2005
Transmission Filter
016044
View
E4OD, 4R100 (2WD) Transmission Premium Filter & Gasket Kit
FORDE4OD, 4R100 (2WD)
1988-2005
Shift-Pro Filter Kit
997042
View

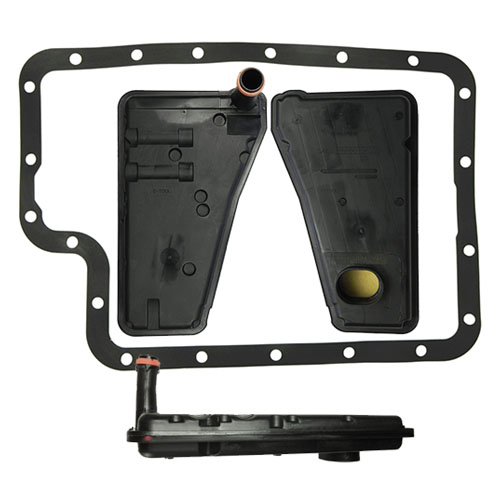

E4OD, 4R100 (4WD) Transmission Premium Filter & Gasket Kit
FORDE4OD, 4R100 (4WD)
1988-2005
Shift-Pro Filter Kit
997044
View

E4OD Transmission Clutch Plates

C6, E4OD, 4R100 Forward GPZ Friction Clutch Plate
FORDC6, E4OD, 4R100
1977-ON
Forward GPZ Clutch
.077/1.96
90/96
Teeth
6.365
OD
F2TZ-7B164-A
GPZ153
View
E4OD, 4R100 Intermediate GPZ Friction Clutch Plate
FORDE4OD, 4R100
L1997-ON
Intermediate GPZ Clutch 4R100
.076/1.93
50
Teeth
7.793
OD
1C3Z-7B164-BA
GPZ157
View
C6, E4OD, 4R100 Direct GPZ Friction Clutch Plate
FORDC6, E4OD, 4R100
1976-ON
Direct GPZ Clutch
.077/1.96
64
Teeth
6.389
OD
F6TZ-7B164-B
GPZ163
View
E4OD, 4R100 Overdrive GPZ Friction Clutch Plate
FORDE4OD, 4R100
1998-ON
Overdrive GPZ Clutch 4R100
.077/1.96
32
Teeth
8.688
OD
F81Z-7B164-BA
GPZ167
View
E4OD, 4R100 Direct Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Direct Red, Stage-1
.077/1.96
64
Teeth
6.389
OD
C8AZ-7B164-H, F6TZ-7B164-B
R600340
View
E4OD, 4R100 Forward Hardened Core Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Forward, Stage-1
.077/1.96
90/96
Teeth
6.365
OD
F2TZ-7B164-A
R600360
View
E4OD, 4R100 Intermediate Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Intermediate, Stage-1
.077/1.96
50
Teeth
7.793
OD
F7TZ-7B164-BA
R600380
View
E4OD, 4R100 Low, Reverse Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1997-ON
Low, Reverse, Stage-1
.078/1.98
24
Teeth
6.795
OD
F81Z-7B164-DA
R600400
View
E4OD, 4R100 Overdrive Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-1999
Overdrive, Stage-1
.077/1.96
64
Teeth
8.69
OD
E9TZ-7B164-A
R600410
View
E4OD, 4R100 Coast Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Coast, Stage-1
.077/1.96
60
Teeth
6.594
OD
F4TZ-7B164-AA
R600430
View
E4OD, 4R100 Low, Reverse Stage-1 Friction Clutch Plate
FORDE4OD, 4R100
1989-1996
Low, Reverse, Stage-1
.076/1.93
72
Teeth
6.798
OD
3C3Z-7B164-CA, D6AZ-7B164-A
R600835
View
E4OD, 4R100 Low, Reverse GEN 2, Blue Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Low, Reverse, GEN 2, Race Product
.077/1.96
72
Teeth
6.798
OD
C6AZ-7B164-C
R577220
View
C6 Direct GEN 2, Blue Friction Clutch Plate
FORDC6
1976-1996
Direct GEN 2, Race Product
.077/1.96
64
Teeth
6.389
OD
C8AZ-7B164-H
R577470
View
C6, E4OD Forward GEN 2, Blue Friction Clutch Plate
FORDC6, E4OD
1976-1996
Forward GEN 2, Race Product
.077/1.96
90/96
Teeth
6.365
OD
D6AZ-7B164-B
R577520
View
E4OD, 4R100 Intermediate GEN 2, Blue Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Intermediate GEN 2, Race Product
.077/1.96
50
Teeth
7.793
OD
F75Z-7B164-BA
R577610
View
E4OD, 4R100 Coast GEN 2, Blue Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Coast GEN 2, Race Product
.077/1.96
60
Teeth
6.594
OD
F4TZ-7B164-AA
R577750
View
E4OD, 4R100 Overdrive GEN 2, Blue Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Overdrive GEN 2, Race Product
.077/1.96
32
Teeth
8.688
OD
F81Z-7B164-BA
R577760
View
E4OD, 4R100 Low, Reverse GEN 2, Blue Friction Clutch Plate
FORDE4OD, 4R100
1997-ON
Low, Reverse GEN 2
.076/1.93
24
Teeth
6.795
OD
F7TZ-7B164-AA, F81Z-7B164-DA
R577800
View

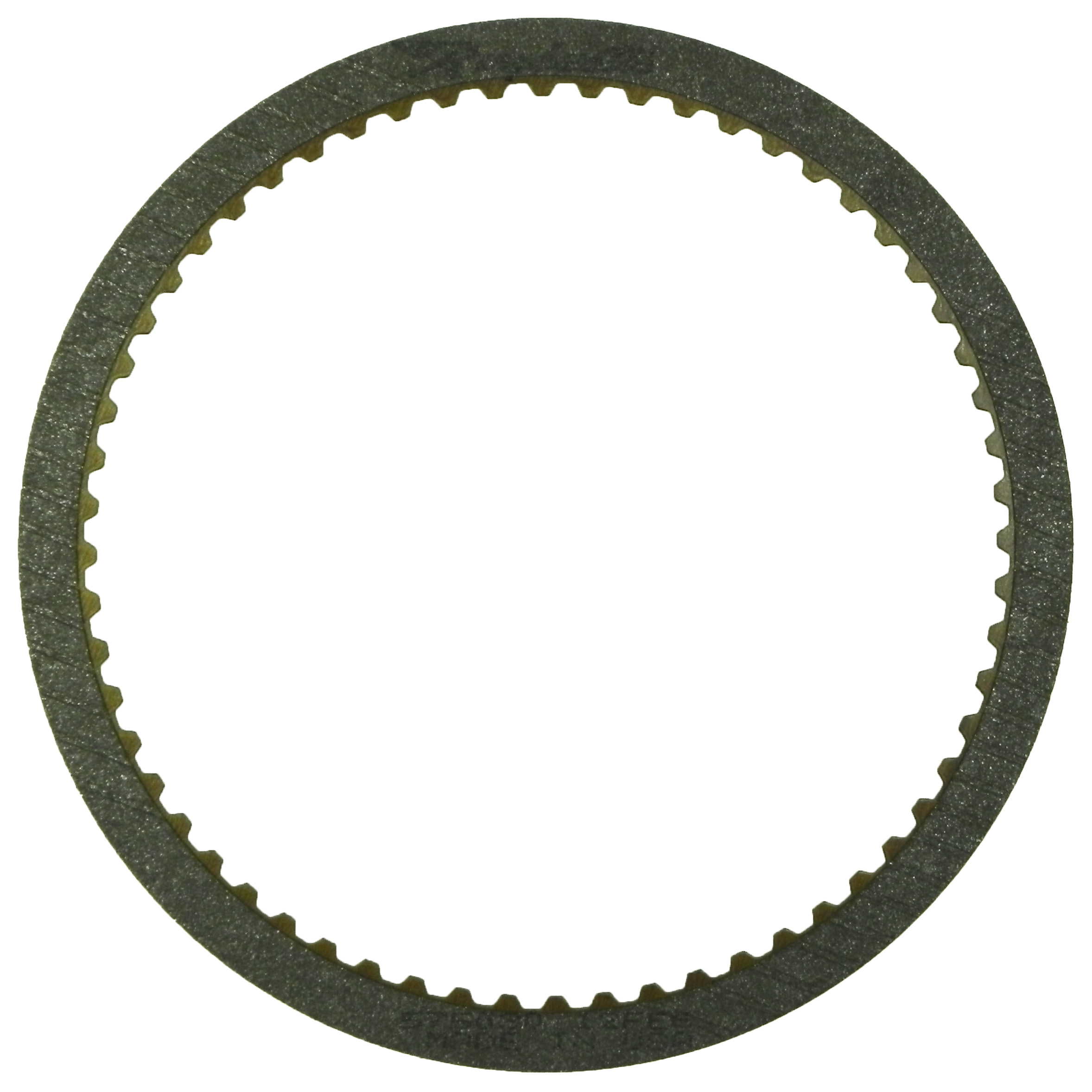

E4OD, 4R100 Coast Graphitic Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Coast Graphitic
.077/1.96
60
Teeth
6.594
OD
F4TZ-7B164-AA
R575030
View
E4OD, 4R100 Overdrive Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Overdrive
.077/1.96
64
Teeth
8.69
OD
E9TZ-7B164-A
R575120
View
E4OD, 4R100 Overdrive Friction Clutch Plate
FORDE4OD, 4R100
1998-ON
Overdrive
.077/1.96
32
Teeth
8.688
OD
F81Z-7B164-A
R575130
View

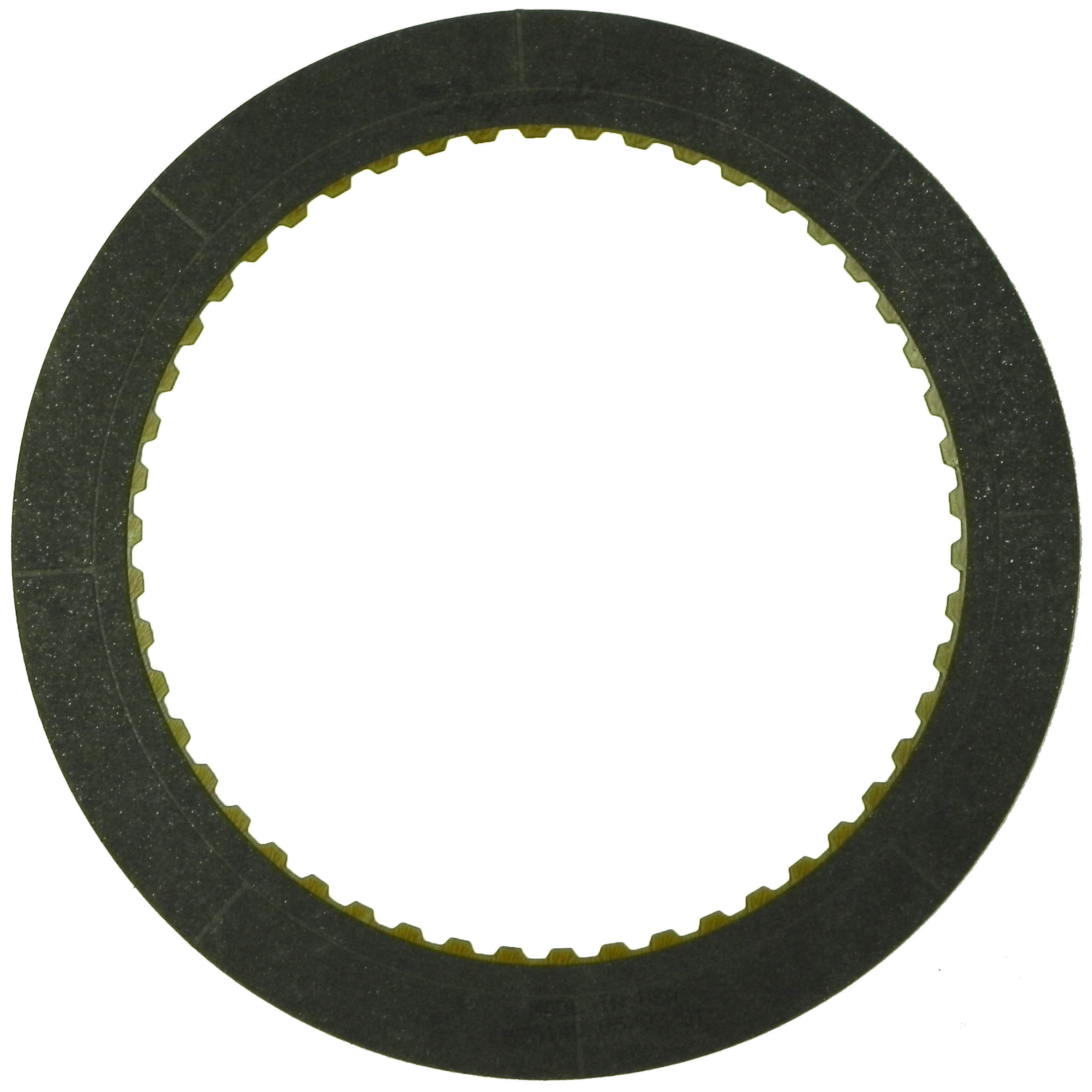

E4OD, 4R100 Intermediate High Energy Friction Clutch Plate
FORDE4OD, 4R100
1989-ON
Intermediate High Energy, 4R100 Except With Diode
.074/1.88
50
Teeth
7.793
OD
F75Z-7B164-BA
R575140
View
C6, E4OD Direct, 1st Design Friction Clutch Plate
FORDC6, E4OD
1976-1996
Direct, 1st Design
.077/1.96
64
Teeth
6.389
OD
F6TZ-7B164-B
R505280
View
C6, E4OD, 4R100 Forward, Hardened Core Friction Clutch Plate
FORDC6, E4OD, 4R100
1989-1996
Forward, Hardened Core
.077/1.96
90/96
Teeth
6.365
OD
F2TZ-7B164-A
R560200
View
E4OD, 4R100 Low, Reverse Friction Clutch Plate
FORDE4OD, 4R100
1997-ON
Low, Reverse
.076/1.93
24
Teeth
6.795
OD
F81Z-7B164-DA
R560717
View
TH400, 3L80, 4L80E Intermediate .080" GPZ Friction Clutch Plate
GMTH400, 3L80, 4L80E
1964-1995
Intermediate 3L80, 4L80E (.080")
.080/2.03
47
Teeth
6.56
OD
8623151
GPZ108
View
E4OD, 4R100 Forward Direct (.125") Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Direct Pressure Plate Selective
.125/3.18
26
Teeth
6.578
OD
C6AZ-7B066-B, REF. C6AZ-7B066B
511041
View
E4OD, 4R100 Direct (.059") Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Direct
.059/1.50
26
Teeth
6.578
OD
NA
511042
View
E4OD, 4R100 Intermediate (.079") Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Intermediate
.079/2.01
30
Teeth
8.328
OD
E9TP-7B442-DA, E9TZ-7B442-B
511043
View
E4OD, 4R100 Overdrive (.079") Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Overdrive Selective
.079/2.01
6
Teeth
9.203
OD
E9TZ-7B442-A
511044
View
E4OD, 4R100 Coast Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Coast
.080/2.03
60
Teeth
6.799
OD
E9TZ-7B442-C
511045
View
E4OD, 4R100 Low Reverse Selective Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Reverse Selective
.079/2.01
18
Teeth
7.204
OD
NA
511046
View
E4OD, 4R100 Forward (.090") Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Forward Selective
.090/2.29
26
Teeth
6.578
OD
E9TZ-7B442-DCOM
511047
View
E4OD, 4R100 Coast Steel Clutch Plate
FORDE4OD, 4R100
1999-ON
Coast (With Stamped Drum-grob)
.079/2.01
32
Teeth
7.085
OD
F81Z-7B442-A, F81Z-7B442-AA
511048
View
E4OD, 4R100 Intermediate (.125") Steel Clutch Plate
FORDE4OD, 4R100
1989-1999
Intermediate
.125/3.18
26/30
Teeth
8.338
OD
E9TZ-7B066-C
511049
View
5R110W TorqShift Low Reverse Steel Clutch Plate
FORD5R110W TorqShift
2003-ON
Reverse
.069/1.75
18
Teeth
7.204
OD
3C3Z-7B442-DA, C6AZ-7B442-B, E9TZ-7B442-E
511451
View
C6 Forward Direct (.080") Steel Clutch Plate
FORDC6
1976-1996
Forward 66-67, 76-ON Direct
.080/2.03
26
Teeth
6.578
OD
C6AZ-7B442-A, E9TZ-7B442-D
511453
View
C6 Direct (.059") Kolene® Steel Clutch Plate
FORDC6
1989-1996
Direct Kolene® High Performance
.059/1.50
26
Teeth
6.578
OD
NA
51K042
View
E4OD, 4R100 Intermediate Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Intermediate Kolene® High Performance
.079/2.01
30
Teeth
8.328
OD
NA
51K043
View
E4OD, 4R100 Overdrive Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Overdrive Kolene® High Performance
.079/2.01
6
Teeth
9.203
OD
NA
51K044
View
E4OD, 4R100 Coast Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Coast Kolene® High Performance
.080/2.03
60
Teeth
6.799
OD
E9TZ-7B442-C
51K045
View
E4OD, 4R100 Forward Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Forward Selective Kolene® High Performance
.090/2.29
26
Teeth
6.578
OD
NA
51K047
View
E4OD, 4R100 Coast Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1999-ON
Coast (With Stamped Drum-grob) Kolene® High Performance
.079/2.01
32
Teeth
7.085
OD
F81Z-7B442-AA
51K048
View
E4OD, 4R100 Intermediate Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-1999
Intermediate Kolene® High Performance
.125/3.18
26/30
Teeth
8.338
OD
E9TZ-7B066-C
51K049
View
C6 Low Reverse Kolene® Steel Clutch Plate
FORDC6
1976-1996
Reverse Kolene® High Performance
.069/1.75
18
Teeth
7.204
OD
NA
51K451
View
E4OD, 4R100 Direct (.080") Kolene® Steel Clutch Plate
FORDE4OD, 4R100
1989-ON
Forward, Direct Kolene® High Performance
.080/2.03
26
Teeth
6.578
OD
NA
51K453
View

E4OD Transmission Bands

E4OD, 4R100 Intermediate Transmission Band
FORDE4OD, 4R100
1989-ON
Intermediate
513812
View

E4OD Transmission Rebuild Kit

No items found.
E4OD Master Rebuild Kit
FORDE4OD
1989-1995
Master Rebuild Kit
AZ36006E
View
E4OD Master Rebuild Kit
FORDE4OD
1996-E1997
Master Rebuild Kit
AZ36006EB
View
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.

Please complete the fields below if you would like us to contact you about upcoming product releases and pre-order information for this transmission.
Which type of parts are you most interested in for this transmission?
Please tell us about your vehicle's performance.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Be The First To Know

Get the latest new product announcements, tech tips, contests, events, and more straight to your inbox from Raybestos Powertrain and Allomatic.
Check the boxes that apply & sign up below.
Thank you!
Oops! Something went wrong while submitting the form.

Connect With Us

Facebook IconTwitter IconYouTube IconInstagram IconLinkedIn Icon

Products

TransmissionTorque ConverterPerformanceHeavy DutyAdhesivesNew Products

Tech

VideosArticlesInstallation GuidesBlogBonding CalculatorSupport

Info

About UsHistoryCareersPoliciesContact

Dedicated to Innovation

Automotive OEM and aftermarket customers deserve original thinking. We design, manufacture and test our automatic transmission parts with attention to every detail, from concept development to selection of raw materials and final assembly.

ISO 14001 Certified
ISO 9001 Certified
IATF 16949 Certified
Privacy PolicyTerms of Use
© 2022 Gearbox Group All Rights Reserved.
|
711 Tech Drive, Crawfordsville, IN USA 47933
Raybestos is a Registered trademark of Brake Parts Inc., used under license.
