R5A51 Transmission Rebuild Kit Parts

View Tech Resources >>
Exploded View >>

R5A51 Transmission Clutch Packs

F5A51, R5A51, V5A51 HT Friction Clutch Pack
MITSUBISHIF5A51, R5A51, V5A51
1996-ON
(HT) Hybrid Technology Friction Clutch Pack Module
Contents:
8 Overdrive/Underdrive HT, 4 2nd Brake High Energy, 2 Reverse High Energy, 6 Low/Reverse (4 Speed) High Energy, 5 Direct (5 Speed) High Energy
RHT96-304
View
F5A51, V4A51, R5A51 (5 Speed) Steel Clutch Pack
MITSUBISHIF5A51, V4A51, R5A51 (5 Speed)
1997-2006
Steel Clutch Pack Module
Contents:
5 Low, Reverse (4 Speed), 2 2nd Brake F4A51, 2 Reverse, 4 Direct (5 Speed), 4 Underdrive, 3 Overdrive
STMMITSU14
View

R5A51 Transmission Filters

R4A51, V4A51, R5A51, V5A51 Transmission Filter
MITSUBISHIR4A51, V4A51, R5A51, V5A51
1997-2000
Transmission Filter
515902
View
R4A51, V4A51, R5A51, V5A51 Transmission Filter
MITSUBISHIR4A51, V4A51, R5A51, V5A51
2001-2006
Transmission Filter
515904
View
No items found.

R5A51 Transmission Clutch Plates

F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Overdrive, Underdrive HT Friction Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Overdrive, Underdrive Proprietary High Energy (HT)
.070/1.78
30
Teeth
5.83
OD
45562-39500, PART OF 45421-3A600
RH565100
View

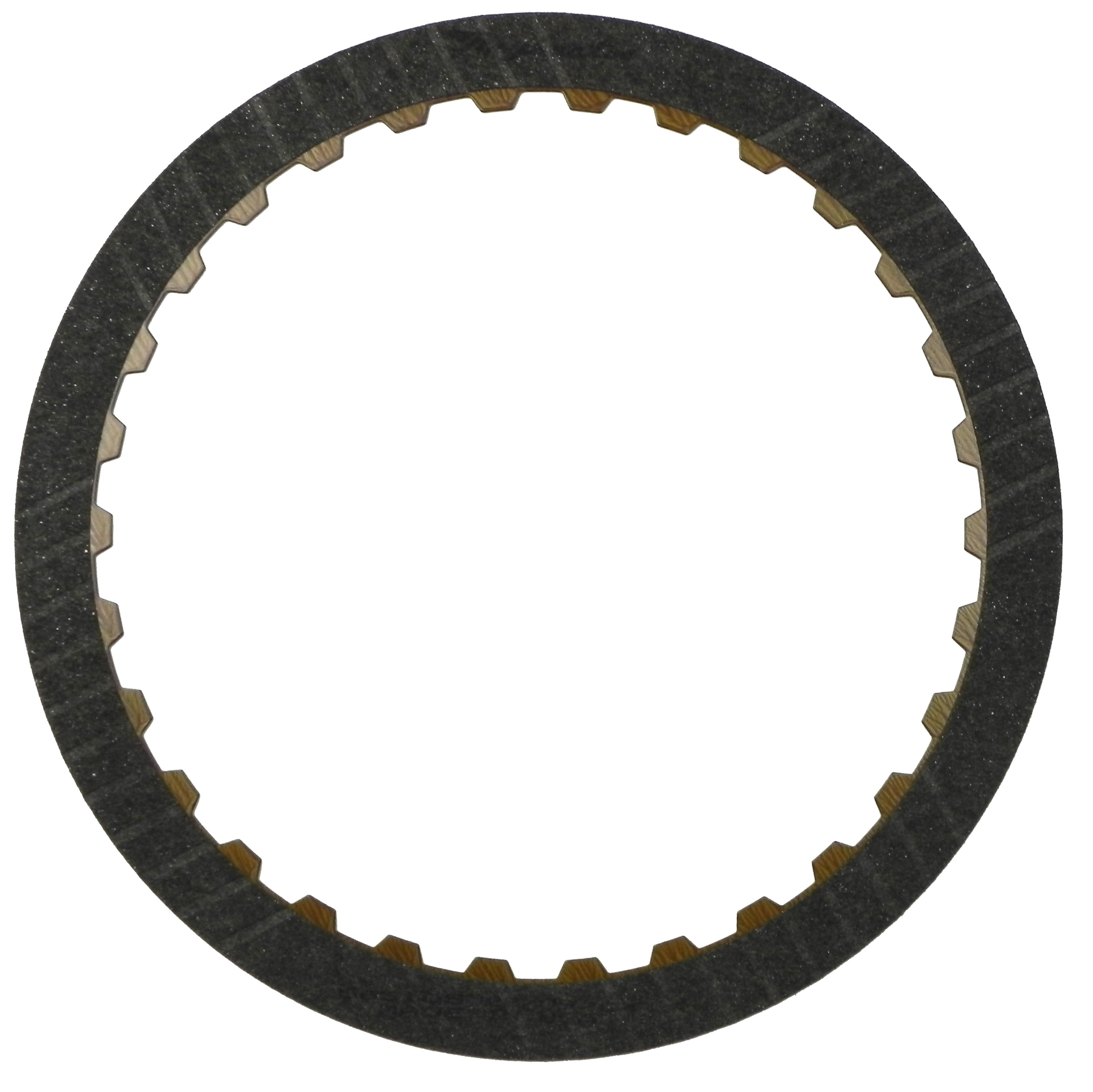

F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51 2nd Brake High Energy Friction Clutch Plate
HYUNDAI / KIA / MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51
1997-2008
2nd Brake High Energy
.069/1.75
30
Teeth
7.03
OD
45625-39500
R565105
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51 Reverse DS High Energy Friction Clutch Plate
HYUNDAI / KIA / MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51
1997-2009
Reverse Clutch, Double Sided High Energy
.070/1.78
30
Teeth
6.535
OD
45445-39500
R565110
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51 Low, Reverse High Energy Friction Clutch Plate
HYUNDAI / KIA / MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51
1997-2009
Low, Reverse High Energy
.066/1.68
30
Teeth
7.03
OD
45632-39500
R565115
View
A5HF1, F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51 Direct High Energy Friction Clutch Plate
HYUNDAI / KIA / MITSUBISHIA5HF1, F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51, R4A51, V4A51, R5A51, V5A51
1997-2008
Direct Clutch High Energy (Coverage 2005-10/30/2006)
.070/1.78
30
Teeth
4.8
OD
45562-39500
R565080
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Low Reverse Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Low, Reverse F4A51
.040/1.02
16
Teeth
7.41
OD
45633-39500
511031
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 2nd Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
2nd Brake F4A51
.098/2.49
16
Teeth
7.41
OD
45626-39500
511030
View
A5HF1 Reverse Steel Clutch Plate
HYUNDAI / KIAA5HF1
2006-2009
Reverse Clutch
.071/1.80
20
Teeth
6.8
OD
45446-39500
511029
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Direct (.098") Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Direct F5A51
.098/2.49
20/30
Teeth
5
OD
MN156727 (KIT)
511037
View
R4A51, V4A51, R5A51, V5A51 Underdrive Steel Clutch Plate
MITSUBISHIR4A51, V4A51, R5A51, V5A51
1997-2006
Underdrive
.071/1.80
20
Teeth
6.09
OD
45527-39500
511027
View
F4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51 Overdrive Steel Clutch Plate
MITSUBISHIF4A41, F4A42, F5A42, F4A51, F4A51-2, F4A5A, F5A51
1997-2008
Overdrive F4A51
.098/2.49
20
Teeth
6.09
OD
45423-39700
511028
View

No items found.

No items found.
No items found.
Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
